Single engine, lower emissions

Scarab can justifiably claim to be the pioneer of the truck-mounted sweeper powered from a single-engine. Operating the whole machine from the engine of the truck chassis provides many advantages, including reduced fuel consumption, decreased noise and engine pollution, less weight for a greater payload, and reduced maintenance.

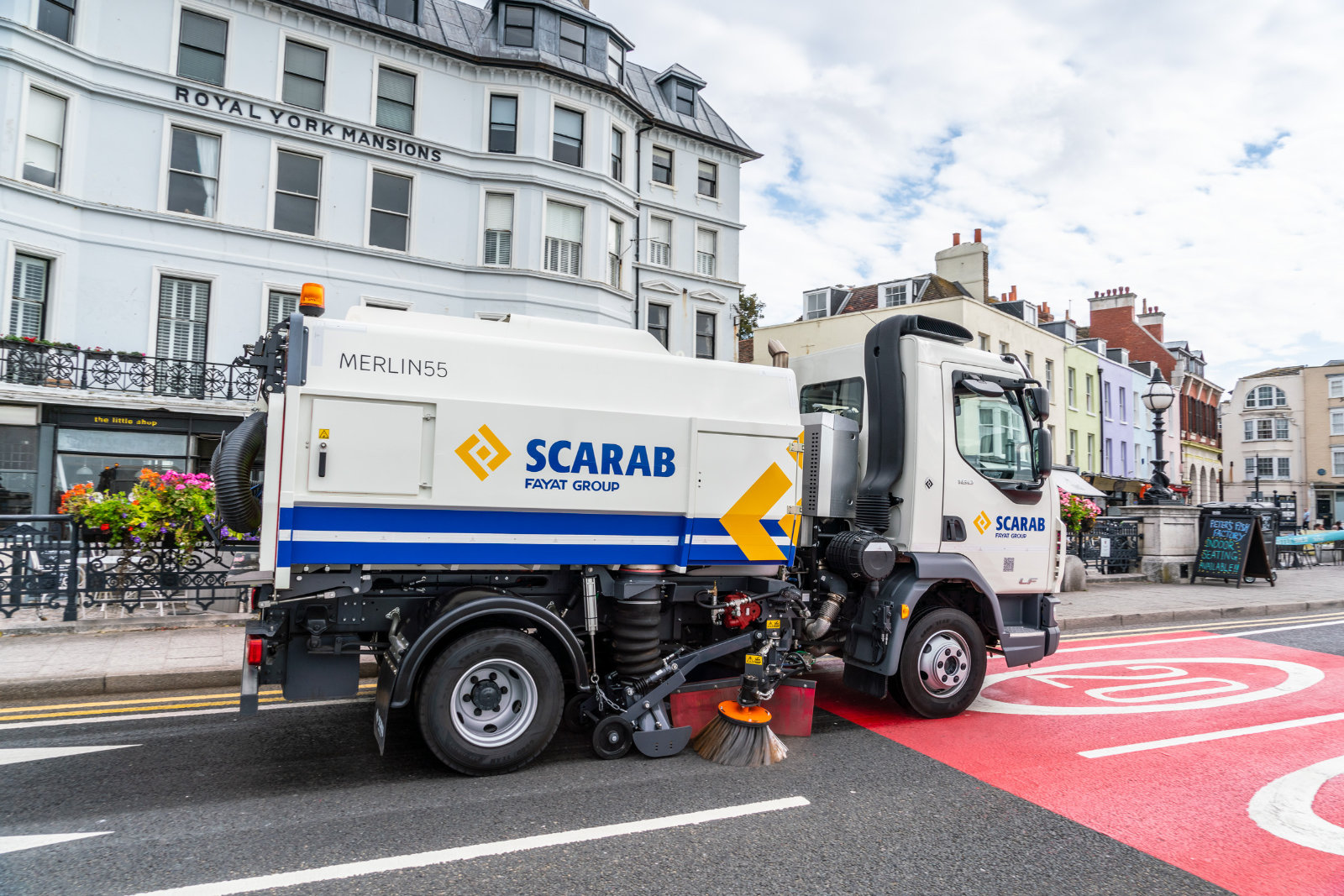

Flexible, truck-mounted solutions

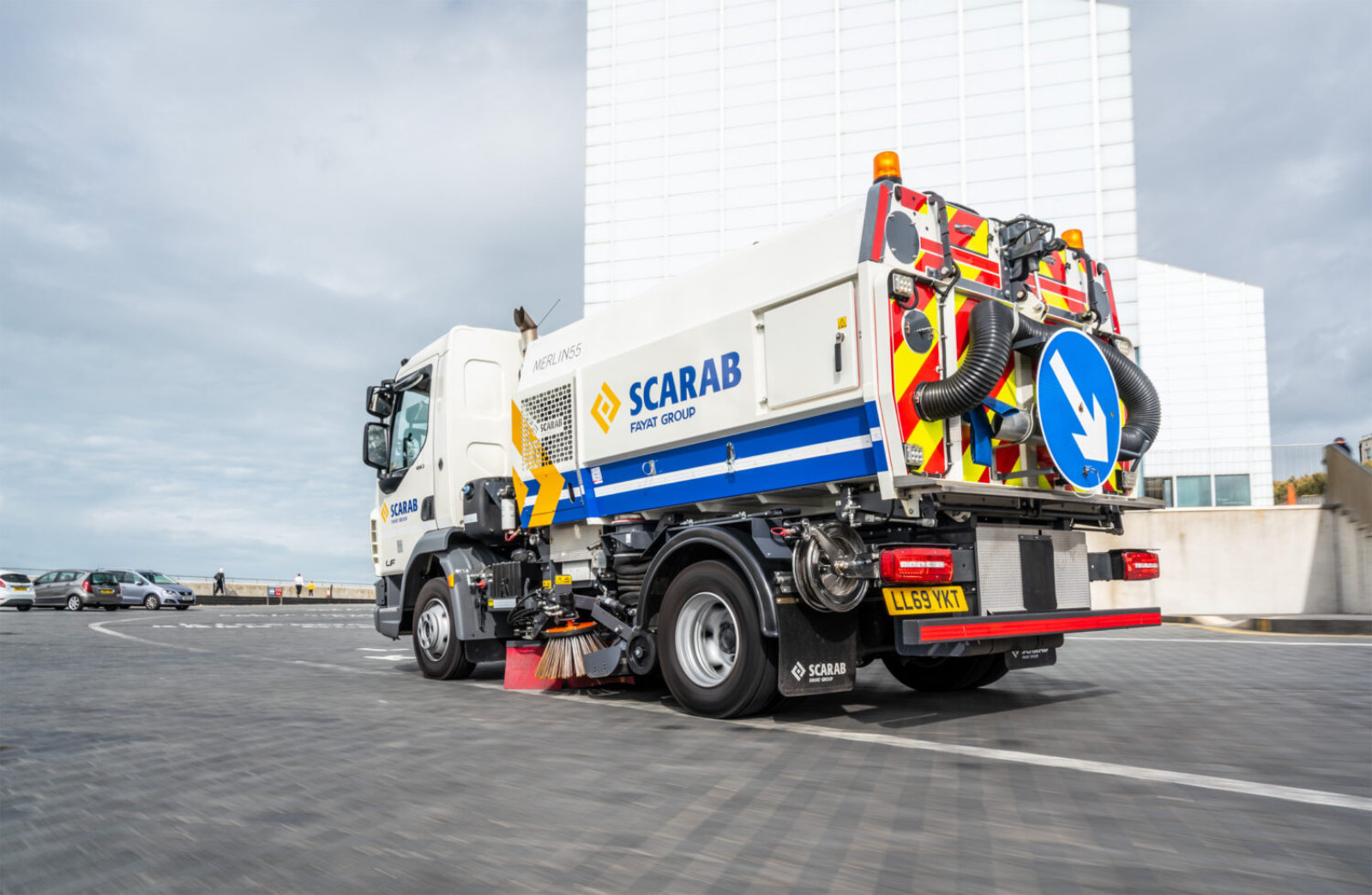

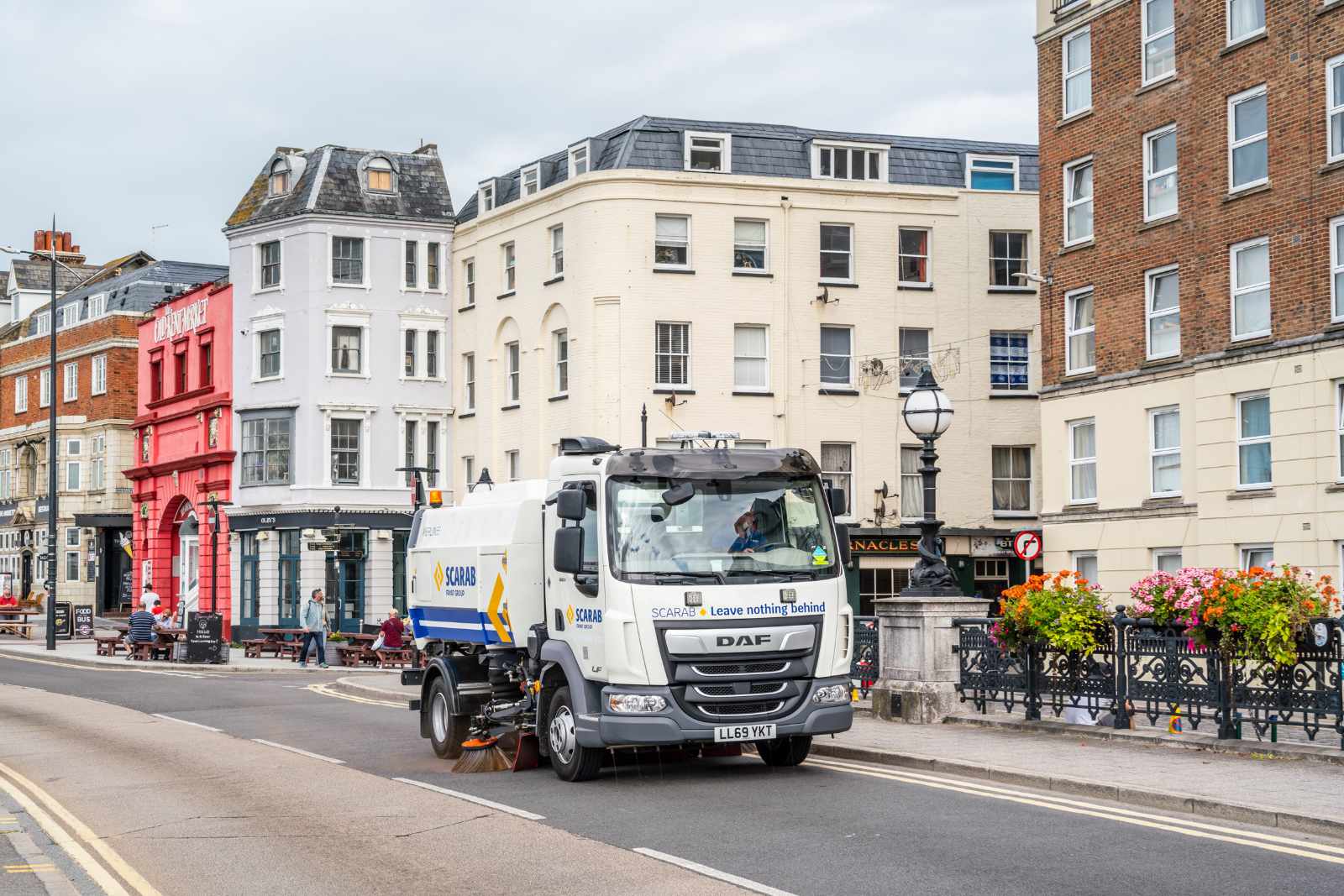

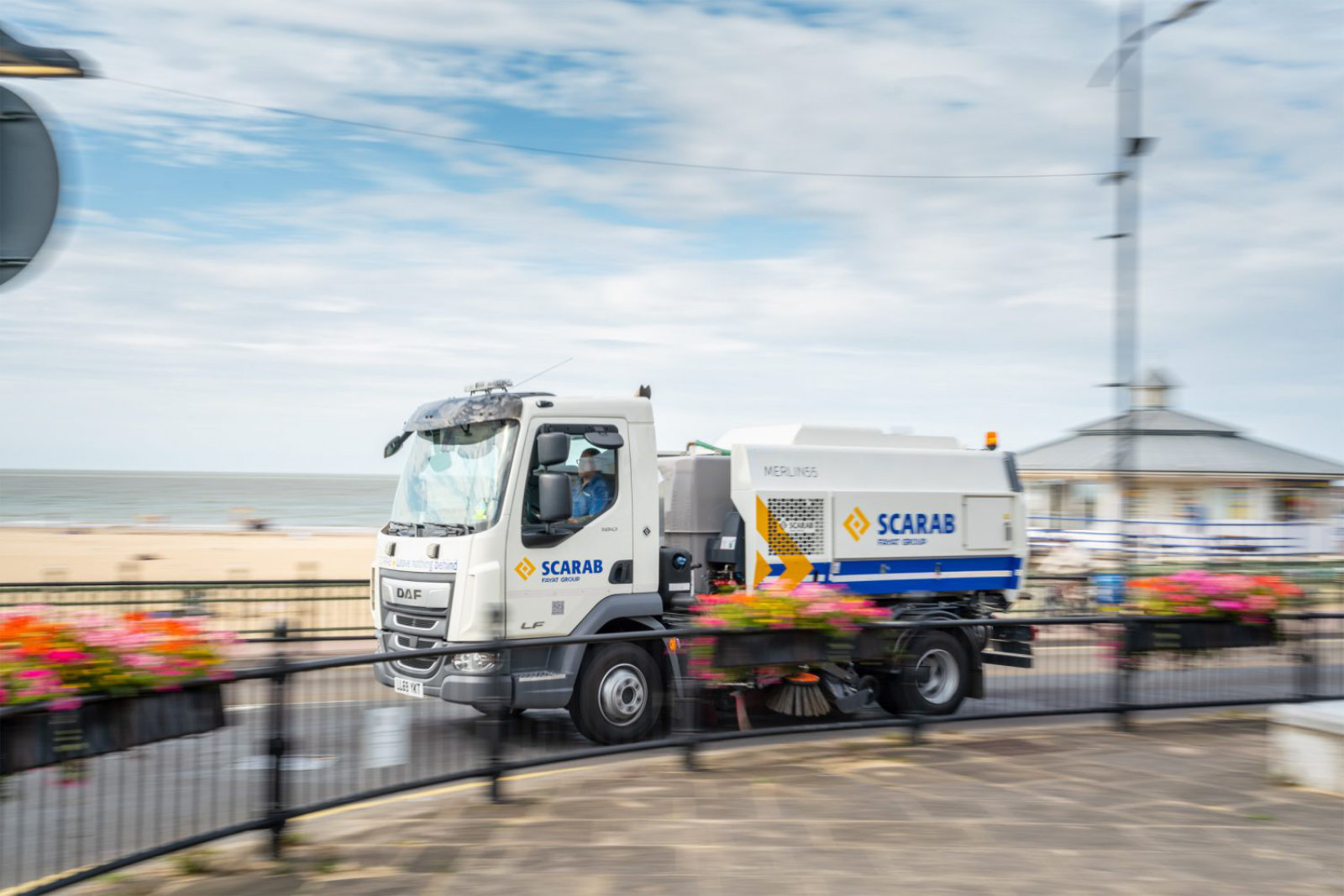

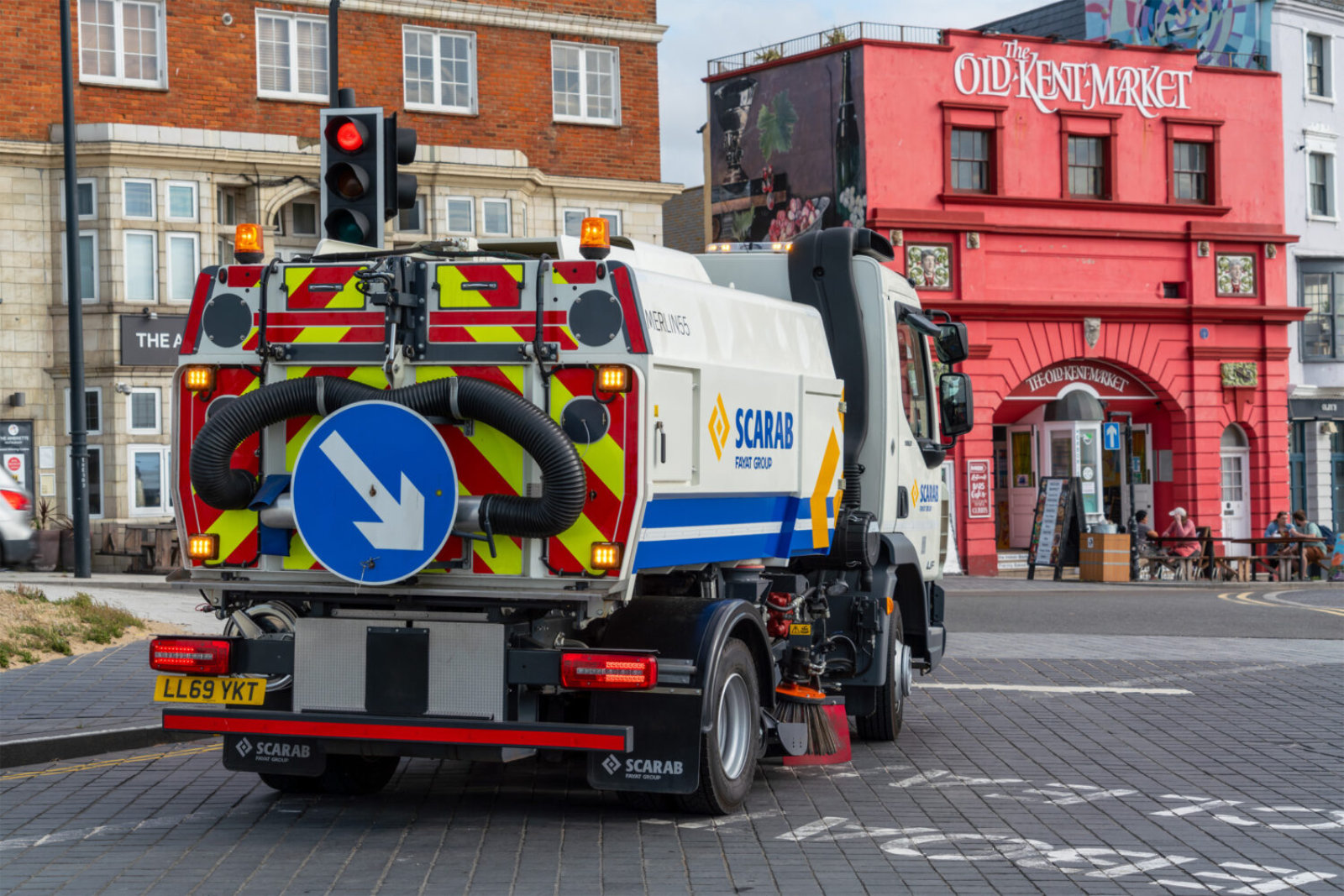

The Merlin 55 is just one of Scarab's expertly engineered truck-mounted road sweeping solutions. Because of its flexibility, the Merlin 55 can be fitted to a wide variety of chassis from as low as 7.5 tonnes GVW.

Hydrostatic System

The Scarab designed hydrostatic gearbox is installed in the chassis driveline and allows the sweeping components to be powered directly from the chassis engine. It also offers a range of operator benefits with its simple joystick control for forward and reverse, allowing single-pedal control which reduces fatigue and enables the driver to fully concentrate on sweeping.

Powerful & Reliable Suction Performance

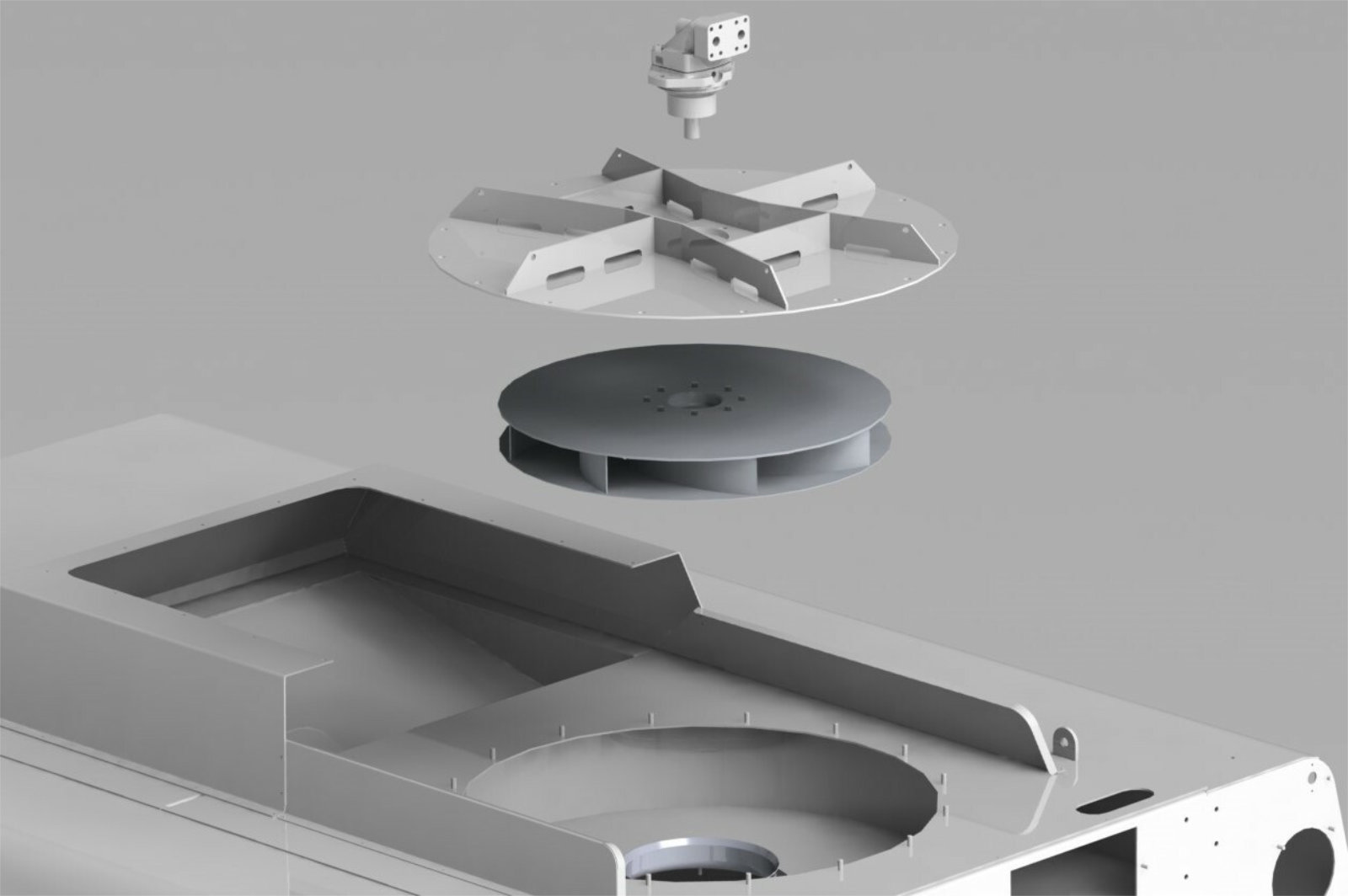

A stainless steel 905.5mm roof-mounted impellor is positioned to produce a short, efficient airflow path for high suction performance and reduced power consumption. This ensures the Merlin 55 provides a powerful and consistent clean in a variety of municipal and contractor applications, making it a leader in its class.

Extensive Sweeping Capabilities

The Merlin 55 is available in both single and optional dual sweep configuration. When the suction nozzle, side brush and Widesweep functions are in operation, the Merlin 55 can sweep at a 2290mm width. However, the brushes can reach an impressive 2850mm span when simultaneously dual sweeping.

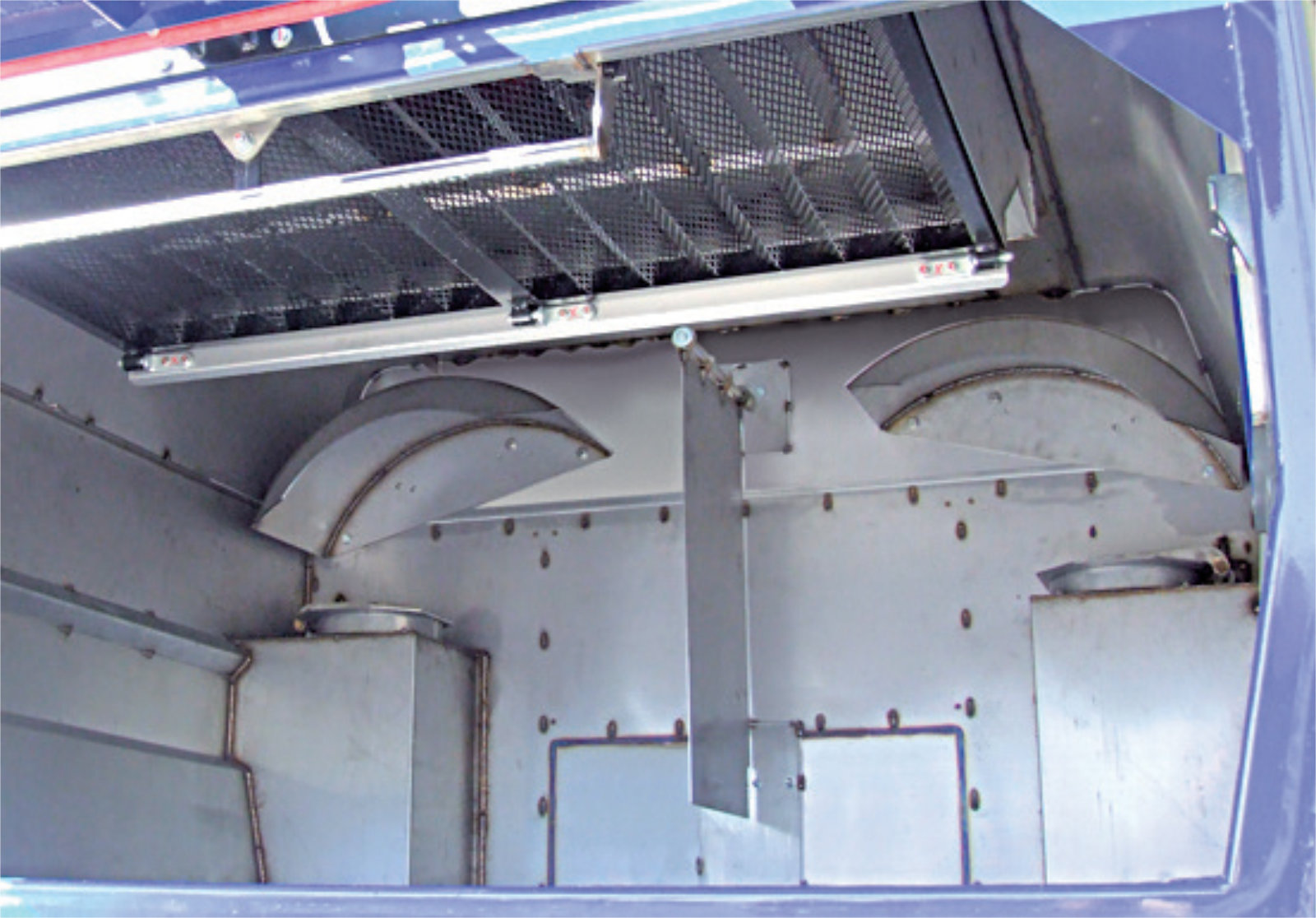

Strong, Robust Hopper

The hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 Stainless Steel, which is shot blasted before a two-pack epoxy primer is applied followed by a hard-wearing topcoat. Particulate screening via a hinged stainless-steel mesh filter swings down for ease of cleaning and access to the stainless-steel inlet cone.

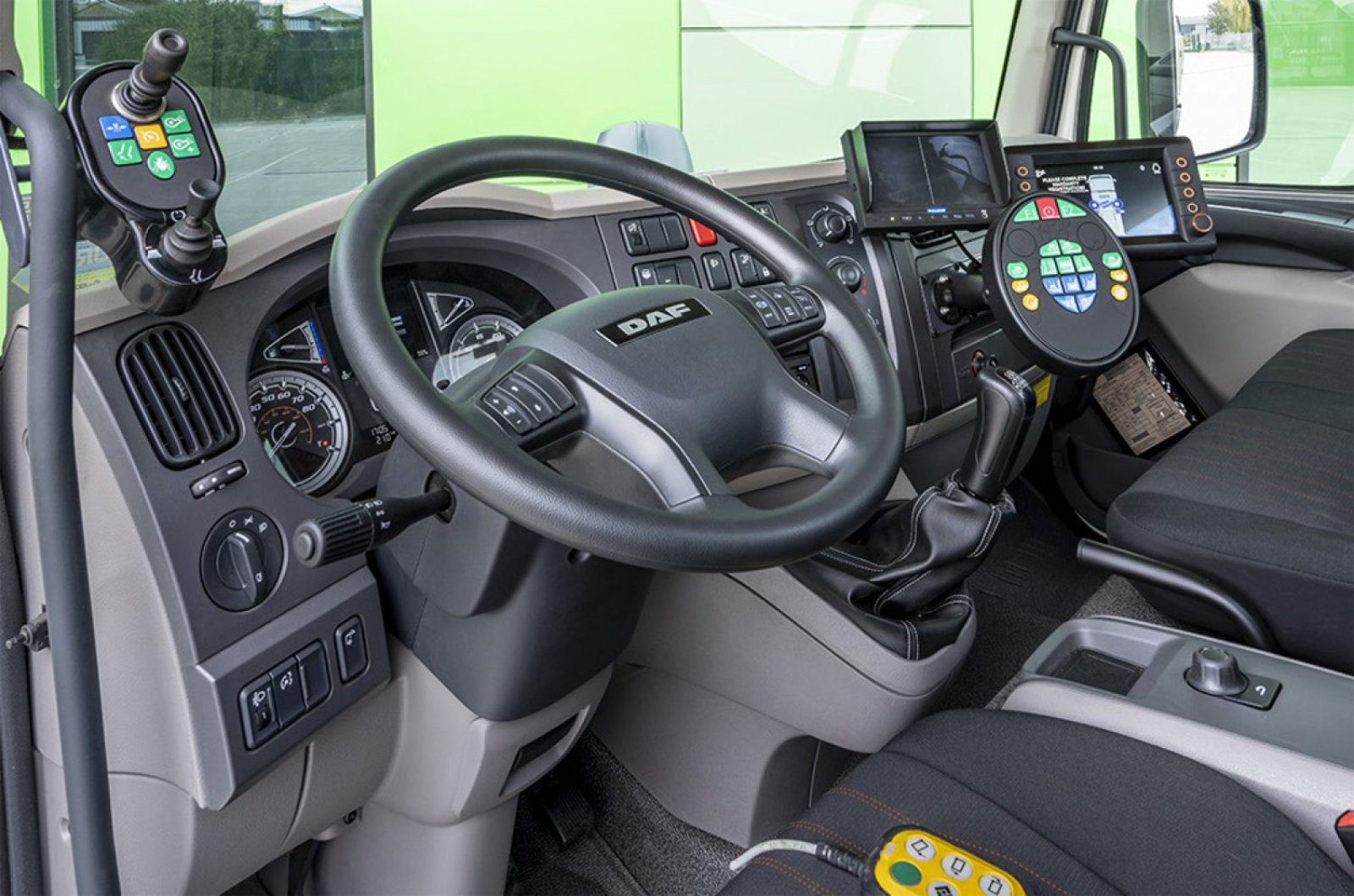

Total, Intuitive Control

The intuitive CANbus controls and a colour monitor provide comprehensive feedback to both the driver and service team. The clear display indicates the sweeping configuration and vehicle condition while also highlighting warnings and service reminders. Our real-time monitoring and data logging provide valuable assistance in troubleshooting technical problems and help keep your machine running at its most efficient.

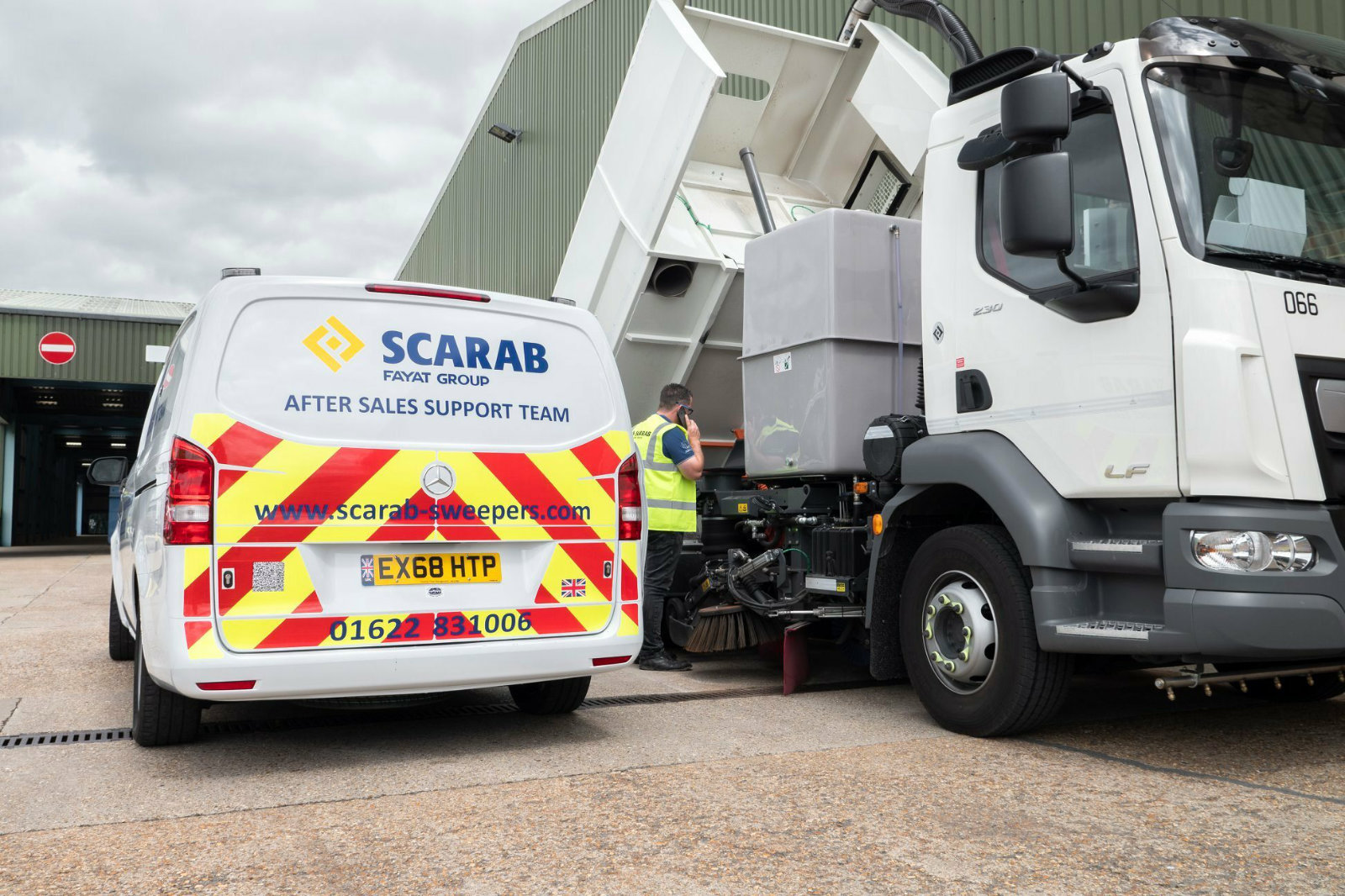

Market Leading After Sales Support

As well as supplying market-leading sweeping solutions around the world, National Sweeper Services is proud to offer comprehensive After Sales support to clients. We offer a range of tailored Service and Maintenance contracts to our clients to ensure that their Scarab machines are able to keep working at optimum performance, for longer. What's more, thanks to our dedicated parts warehouse, we ensure genuine Scarab parts are always in stock.

High-Pressure Water Options

• High-Pressure Pump: A high-volume pump with a hand lance and self-retracting hose reel for targeted deep cleaning.

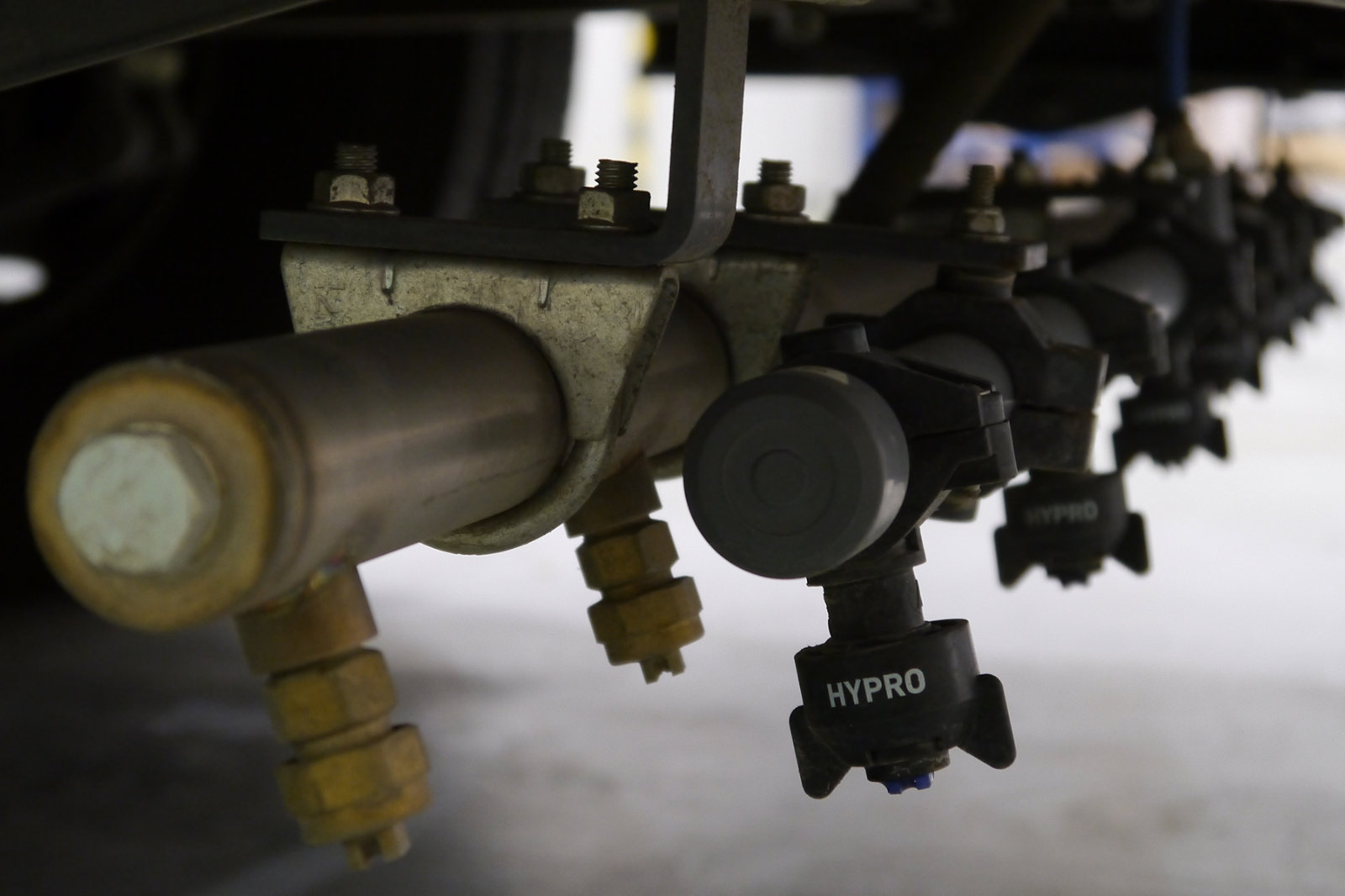

• Additional Dust Suppression for Nozzles: A 4-jet water-boost bar in front of the suction nozzle to control airborne particulates.

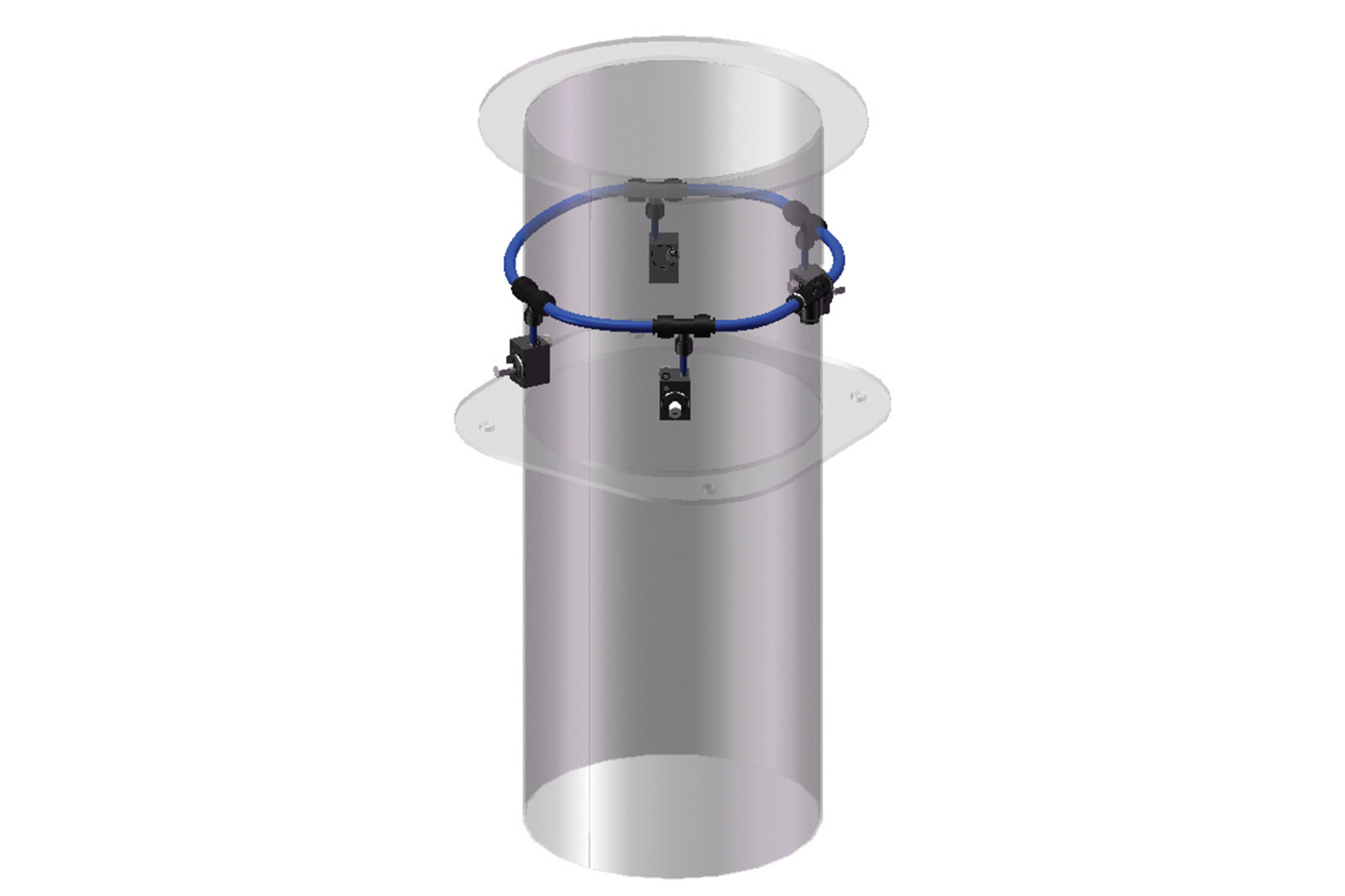

• Additional Dust Suppression for Tubes: Four additional jets at the top of the suction tube for comprehensive dust control.
• Detergent Injection Kit: For use with the hand lance on difficult cleaning operations, such as removing grime or oil stains.
• Hydrant Standpipe & Hose: Allows for quick and convenient on-task replenishment of the water tank.
• Simultaneous Wash & Sweep Facility: A popular option that enables deep cleaning and sweeping in a single, efficient pass.

Auxiliary Brush Options

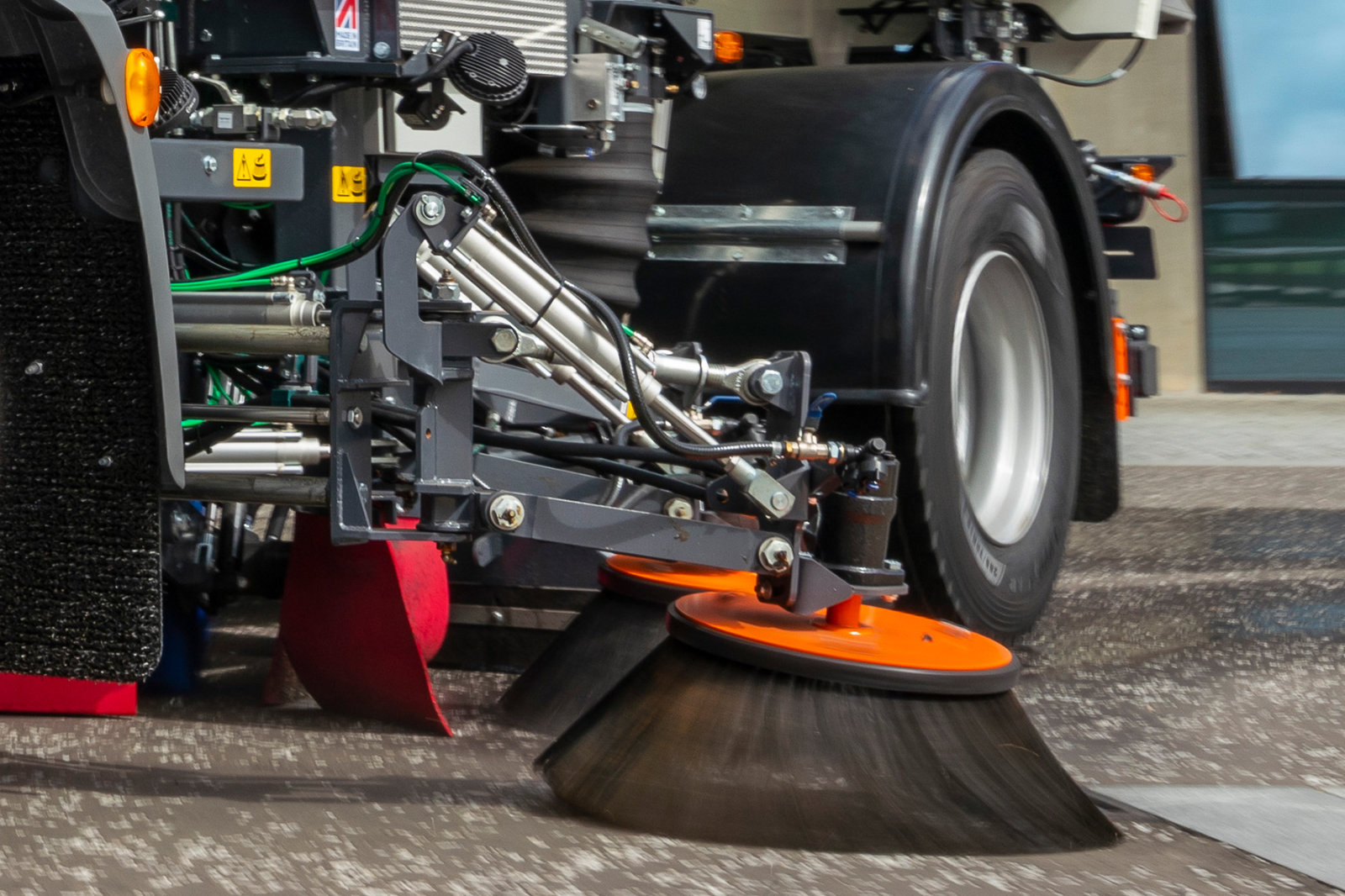

• Dual Sweep: Adds a second channel brush on the opposite side of the sweeper, plus a swivelling widesweep for a massively increased cleaning width.
• Simultaneous Dual Sweep: Allows both channel brushes and the widesweep to operate together, ideal for efficiently cleaning wider roads or car parks.
• Vari Brush: Provides variable in-and-out brush control, giving the operator precise command for tackling difficult kerb lines and sweeping around street furniture.

Debris Collection & Suction Options

• Door-mounted Wanderhose: Extends the Merlin 55's cleaning reach for collecting litter and debris from pavements, drains, and other inaccessible areas.
• Suction Tube Dust Suppression: An additional water jet system within the suction tube itself helps to minimise airborne dust during operation.

Safety, Monitoring & Maintenance Options

• Unidrive Reduction Gearbox: A specialised gearbox in the driveline for Unidrive chassis variants to ensure optimal performance.
• CCTV Camera System: Provides clear visibility to the offside brush or rear of the vehicle, enhancing safety during operation and maneuvering.
• Centralised Lubrication & Safety Equipment: Includes options for a manual or automatic lubrication system to simplify upkeep, plus additional beacons and a fire extinguisher for on-site safety.
