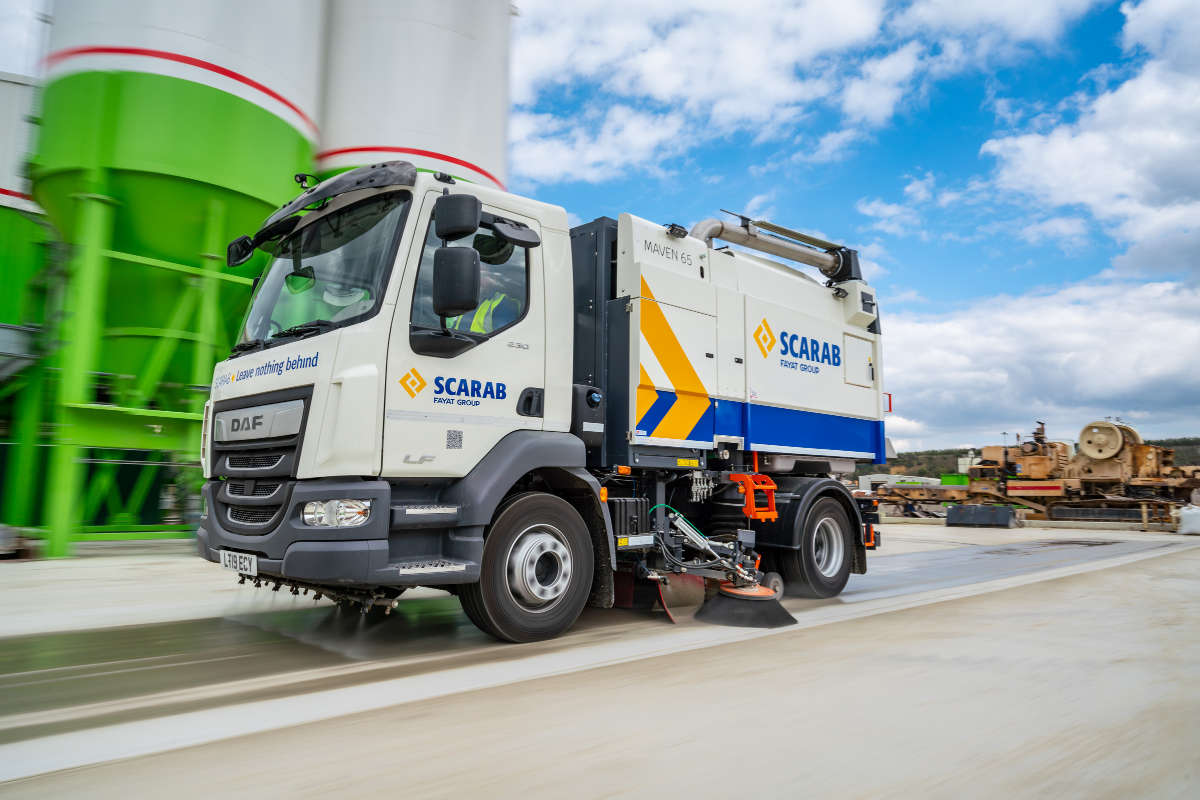

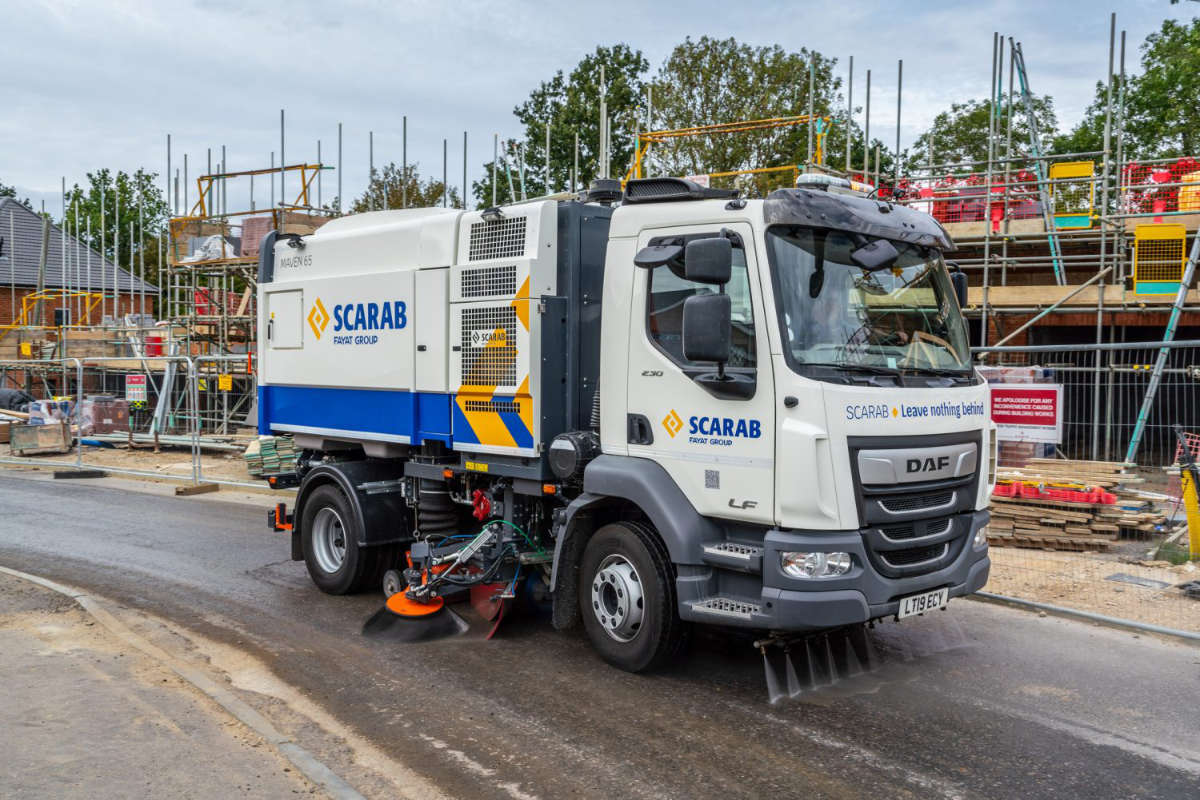

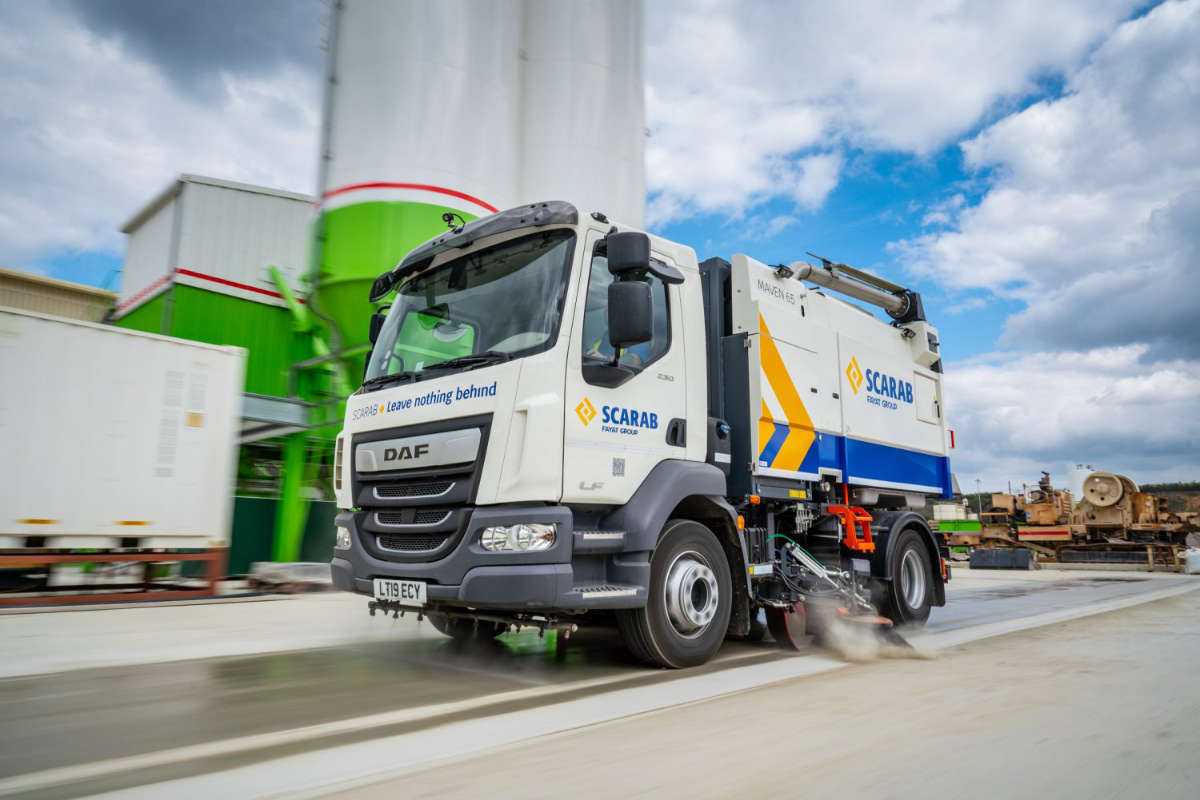

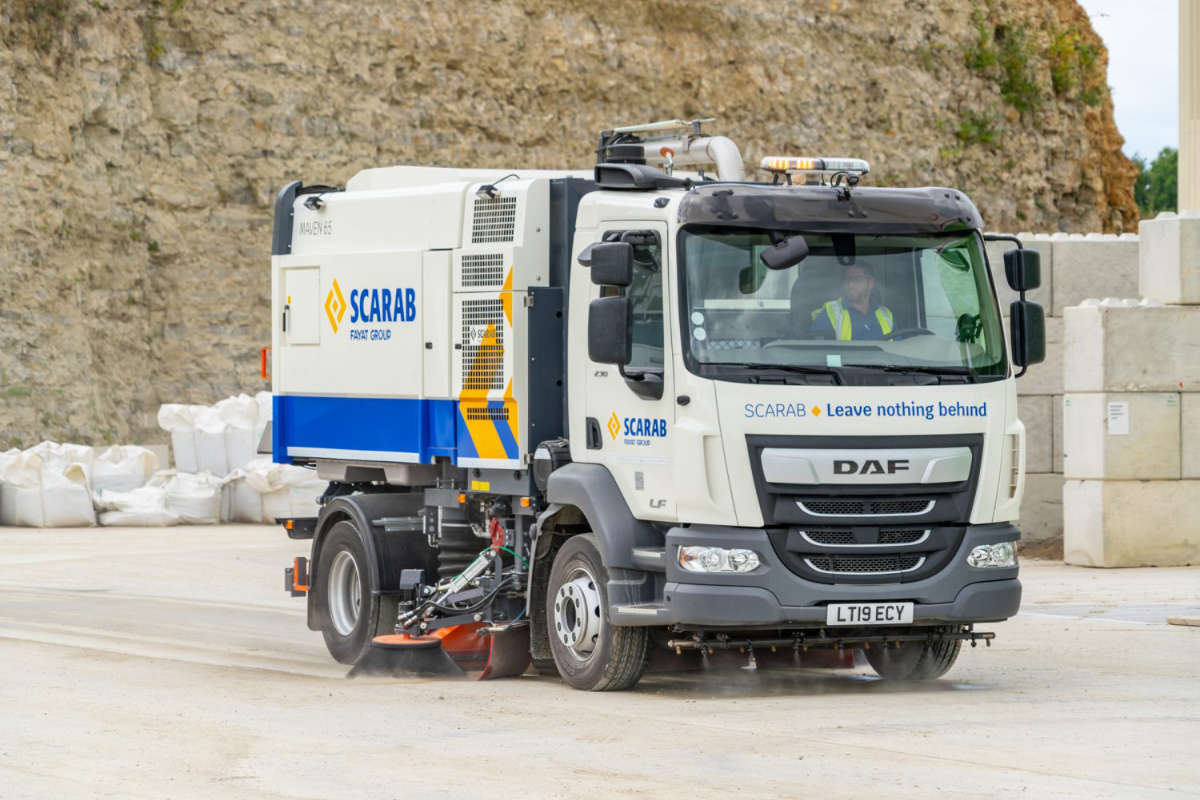

Maven 65 Twin-Engine Road Sweeper
The Next Level of Twin-Engine Sweeping Performance
The Maven 65 is a heavy-duty twin-engine road sweeper from Scarab, capable of being mounted onto virtually any internationally available 12 to 18-tonne GVW truck chassis. Incorporating all the benefits associated with Scarab equipment, the powerful performance and a carefully selected range of options available with the Maven 65 ensure it can meet the demands of all municipal and heavy-duty contractor applications. Guided by extensive customer feedback, the Maven 65 offers significant improvements over previous models, including 20% improved suction performance, increased fuel capacity for longer on-station time, and reduced fuel consumption. Request a Quote for the Maven 65
Vehicle specification
| Size: | 12-18 tonne GVW |
| Sweeping speed: | 0-20 mph / 0-32 kph |
| Hopper capacity: | 6.5 cubic metres |
| Water tank: | 1250-1900 litres |
| Engine: | Deutz Stage V - 55.4kW |
| Typical payload: | 4500-9500 kg |
| Sweep width: | 2345mm (single) / 3600mm (dual) |
| Fuel capacity: | 200 litres |
- Powerful Twin-Engine Design: A dedicated Stage V Deutz engine provides exceptional sweeping power independent of the chassis.
- Improved Performance: 20% better suction performance and 20% reduced fuel consumption compared to its predecessor.
- High-Capacity: 6.5m³ hopper, large 200-litre fuel tank, and up to 9500kg payload for maximum on-station time.
- Chassis Flexibility: Mountable on a wide range of 12-18 tonne GVW truck chassis.
- Total Control: Scarab's industry-leading CANbus system for intuitive operation and feedback.

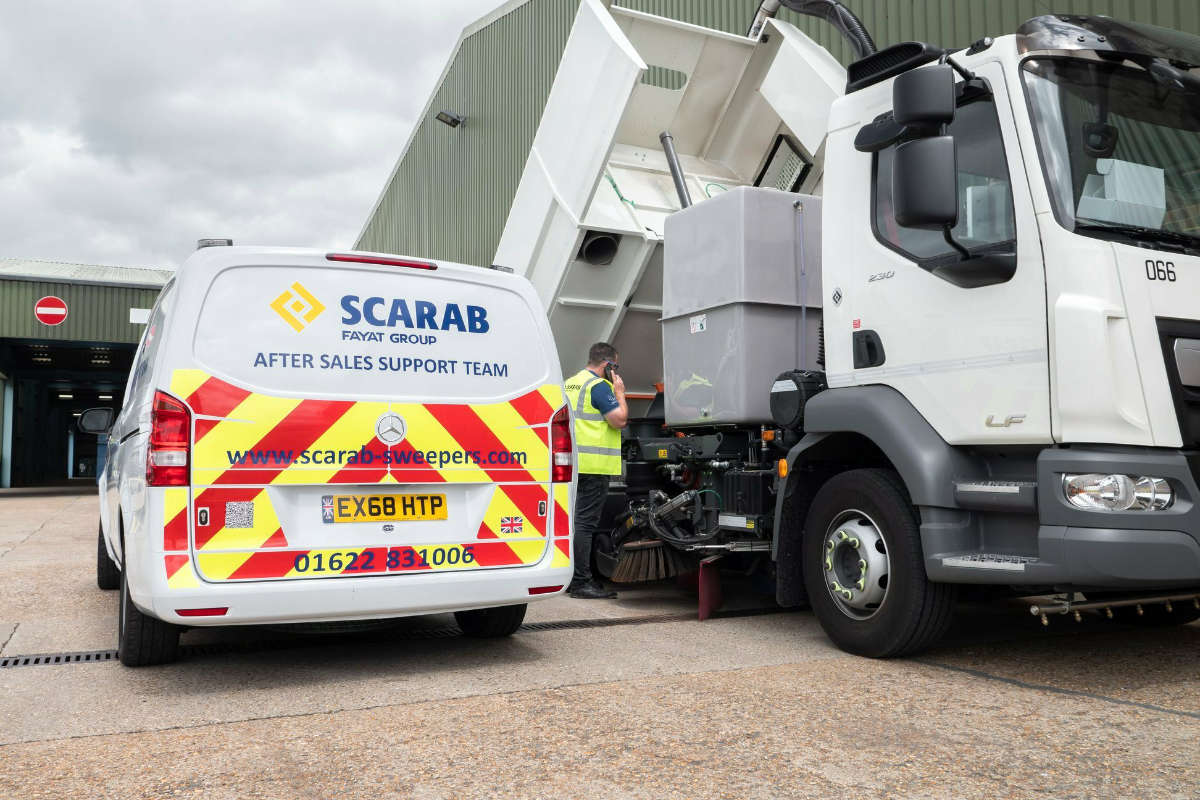

Market Leading After Sales Support
As well as supplying market-leading sweeping solutions around the world, National Sweeper Services is proud to offer comprehensive After Sales support to clients.
We offer a range of tailored Service and Maintenance contracts to our clients to ensure that their Scarab machines are able to keep working at optimum performance, for longer.
What's more, thanks to our dedicated parts warehouse, National Sweeper Services ensures genuine parts are always in stock and can ship its trusted components to clients around the world.

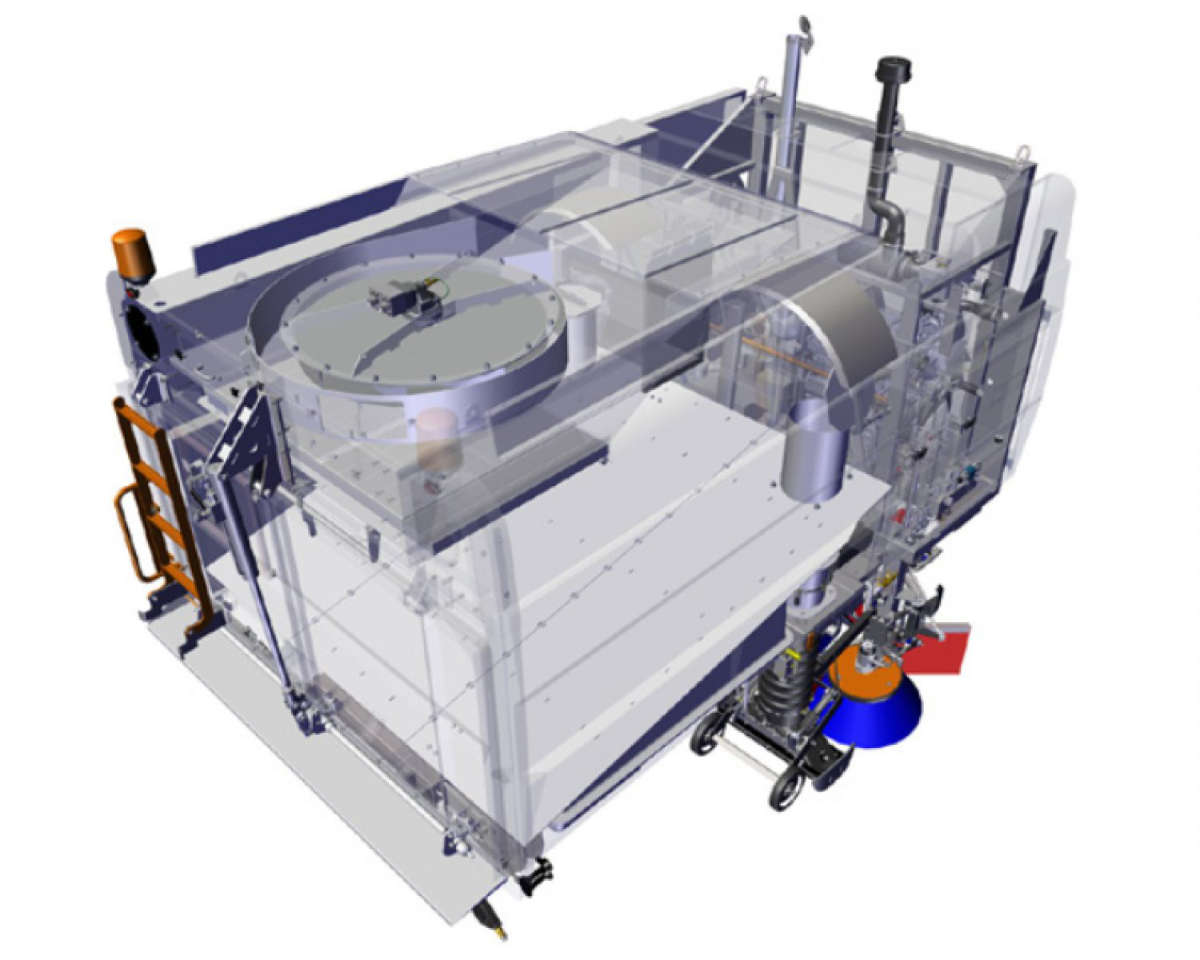

Advanced Twin Drive Configuration
The Maven 65 has been designed for operators who prefer a twin-engine configuration but who also wish to benefit from the very best in road sweeper technology. All the qualities that make SCARAB the street sweeper of choice are incorporated in the Maven 65. The combination of a powerful, yet economical Stage V Deutz auxiliary engine, streamlined airflow path, and an efficient High-Speed Fan configuration has led to a 20% overall reduction in fuel consumption. The quiet, low-emission engine provides ample power at low RPM without the need for AdBlue, and its position between the hopper and cab affords easy access for servicing.
Extensive Sweeping Configuration
The Maven 65 can easily switch between single and dual sweeping functions thanks to the intuitive CANbus control system fitted to every Scarab machine. When the suction nozzle, side brush, and widesweep functions are in operation, the Maven 65 can sweep at a 2345mm width. However, the brushes can reach an impressive 3600mm span when simultaneously dual sweeping, covering large areas with exceptional speed and efficiency.
Strong, Robust Hopper

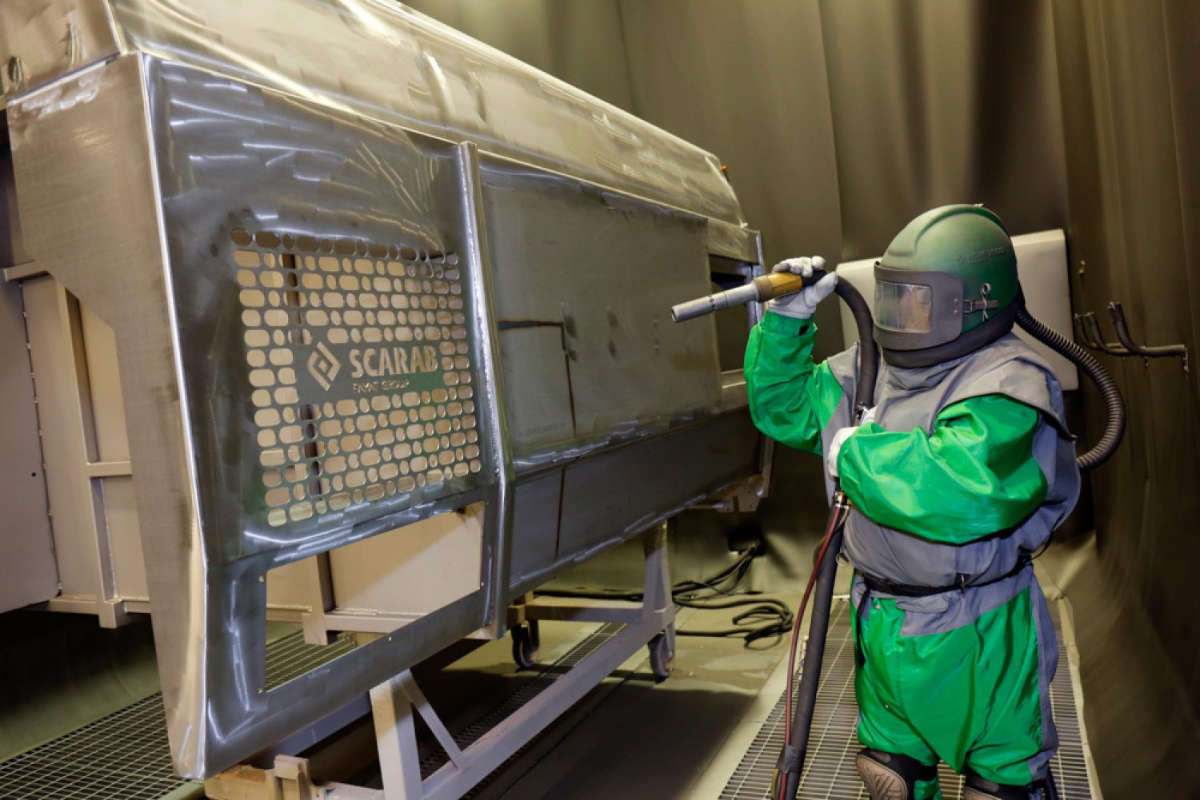

The hopper on the Maven 65 is completely manufactured from strong, corrosion and abrasion-resistant 4003 stainless steel. The hopper is shot-blasted, a two-pack epoxy primer is applied, and a hard-wearing topcoat provides a superior finish. The particulate screening is hinged and swings down to provide easy access for operator cleaning, ensuring durability and ease of maintenance.
Powerful & Reliable Suction Performance
The Maven 65 features a stainless-steel centrifugal impellor positioned to produce an efficient airflow path for high suction performance and reduced power consumption. The auxiliary engine speed is infinitely variable from 1200 - 1550rpm, providing more than enough power for municipal or heavy-duty work. A 1700rpm fan boost is available for tougher environments, ensuring a clean sweep every time.

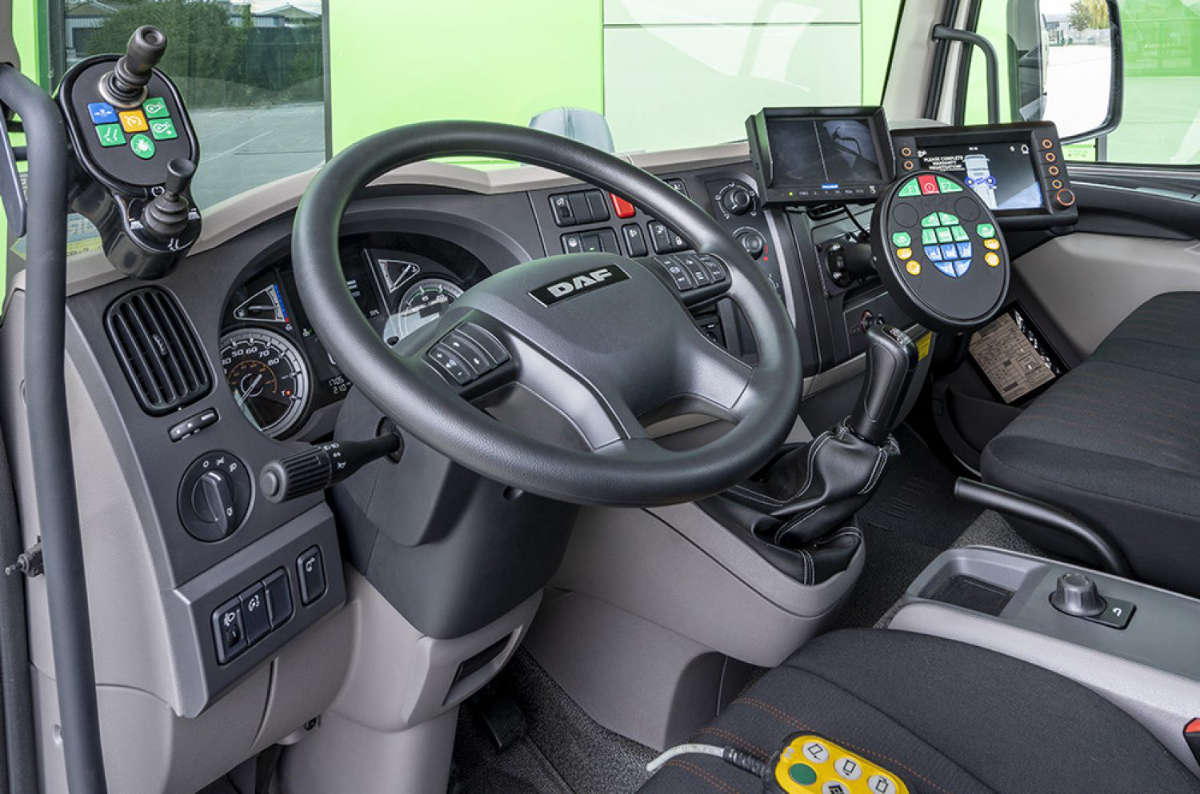

Total, Intuitive Control
The intuitive CANbus controls and a colour monitor provide comprehensive feedback to both the driver and service team. The clear display indicates the sweeping configuration and vehicle condition while also highlighting warnings and service reminders. Our real-time monitoring and data logging provide valuable assistance in troubleshooting technical problems and help keep your Maven 65 running at its most efficient.
Maven 65 Customisation Options
The Maven 65 twin-engine road sweeper comes with a variety of options to help any operator meet the demands of their operation.
High-Pressure Water Options
- High-pressure/high-volume pump with hand lance and self-retracting hose reel

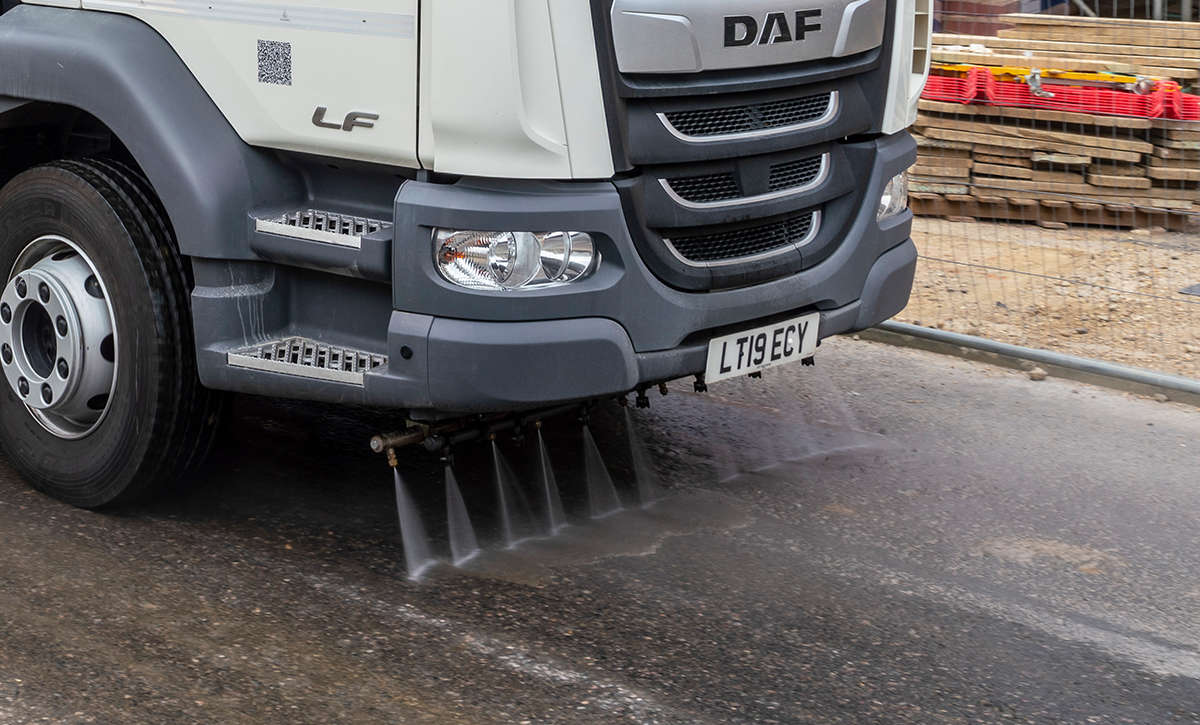

- Additional dust suppression for suction tubes
- Simultaneous dual wash and sweep facility
- Additional 650-litre water tank

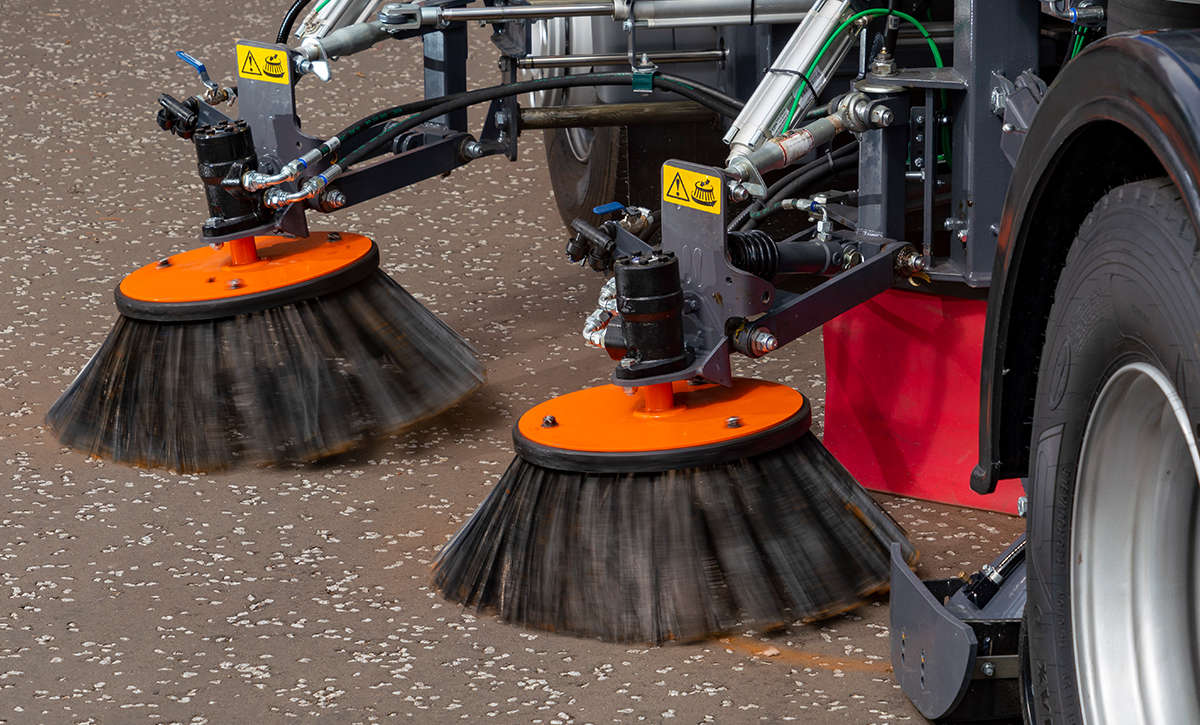

Auxiliary Brush & Sweeping Options
- Dual sweep (a second Channel Brush on the opposite side and swivelling Widesweep)
- Simultaneous dual sweep (both Channel Brushes and Widesweep)
- Adjustable pressure control for Channel Brushes and Widesweep
- Auxiliary Channel Brush
- Tilting Brush
- Vari Brush (variable in/out brush control)
Suction System Options

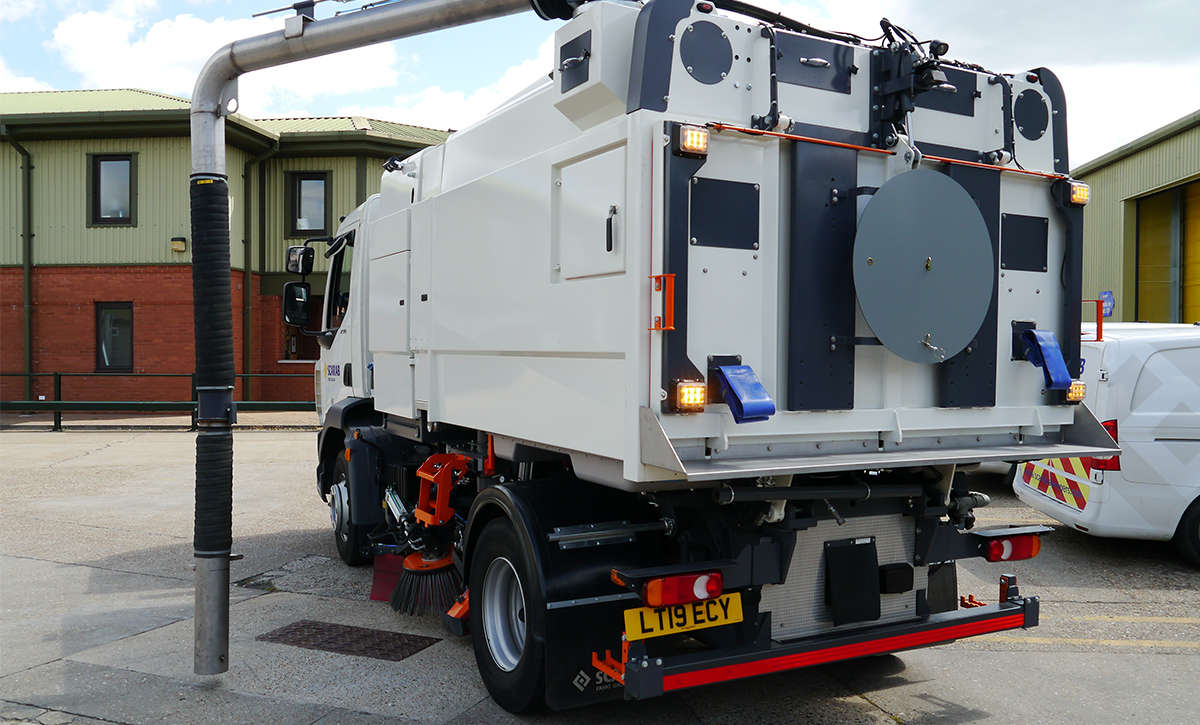

- Rear-mounted swing-out Wander Boom (left or right hand mounting)
- Door-mounted Rear Boom
- Roof-mounted Overhead Boom
- Polyurethane coating of suction path components

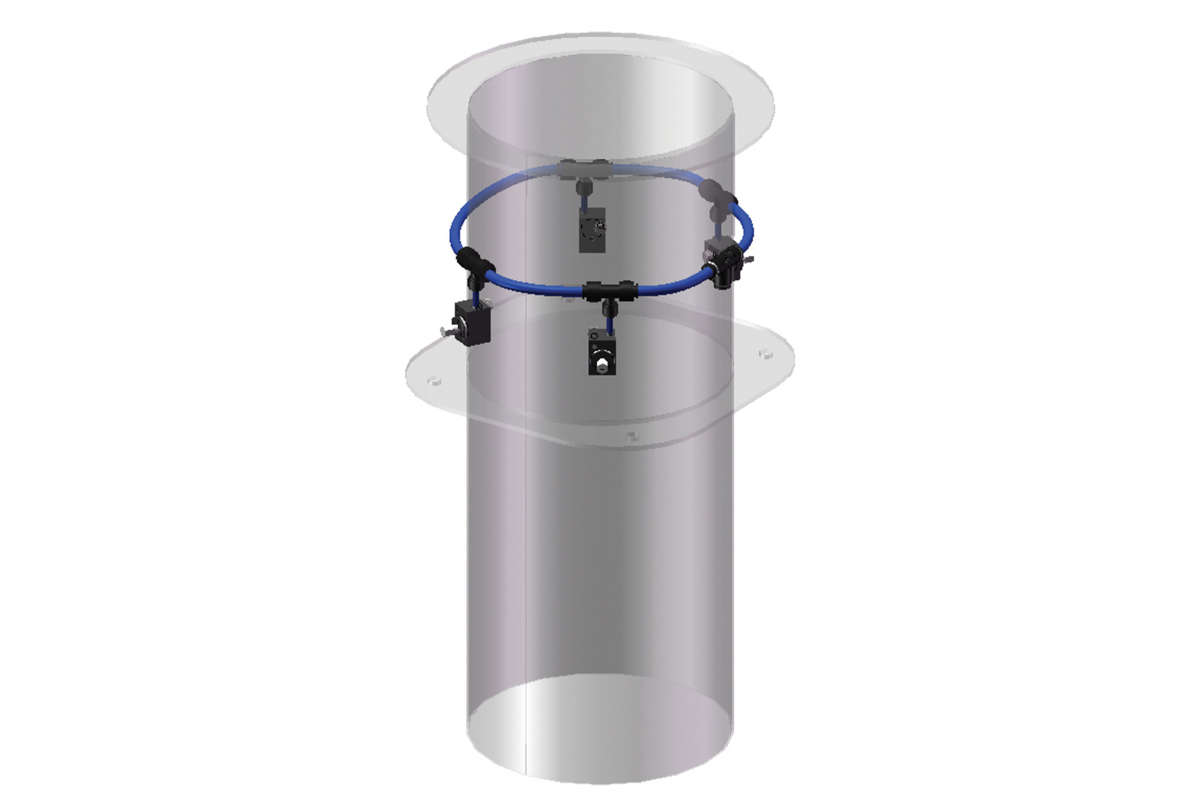

- Suction Tube Dust Suppression
Safety, Monitoring & Visibility Options
- CCTV camera to offside brush and/or rear of vehicle
- Centralised lubrication system (manual or automatic)
- Alternative or additional beacons
- Work lights
- Dual door pods for Dual-Steer Chassis
