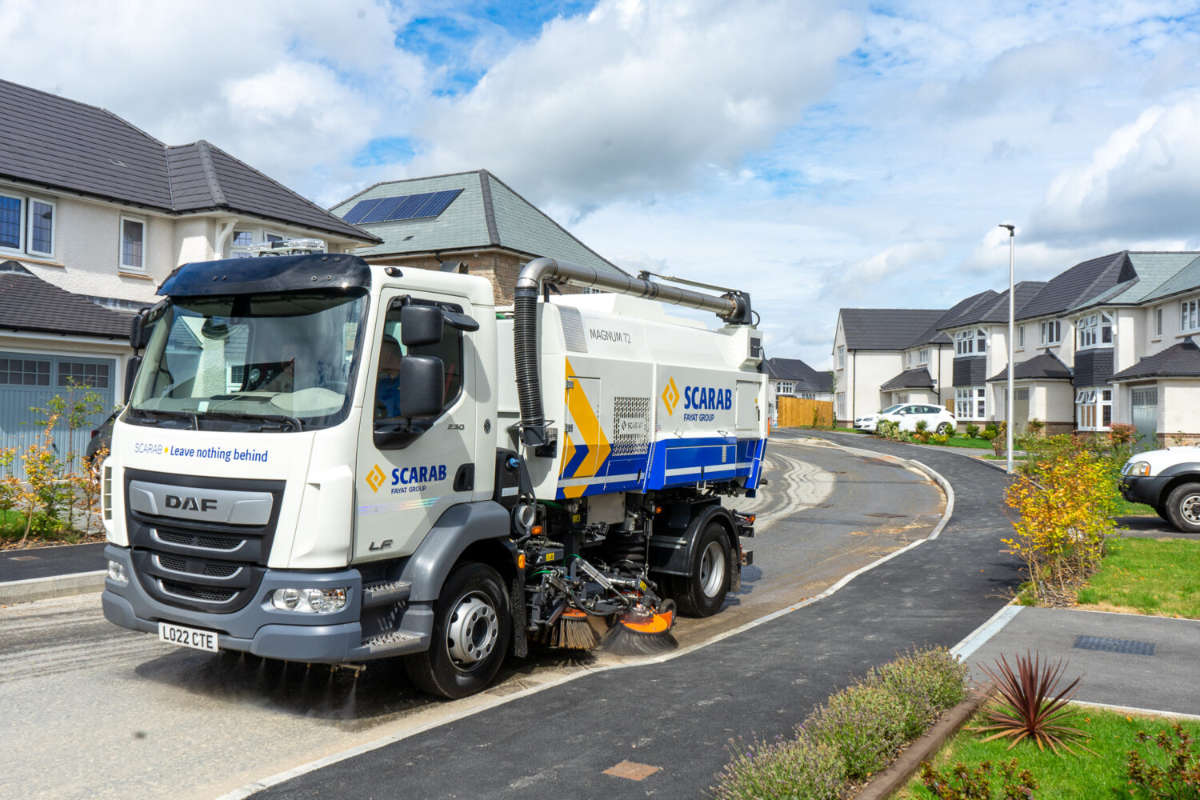

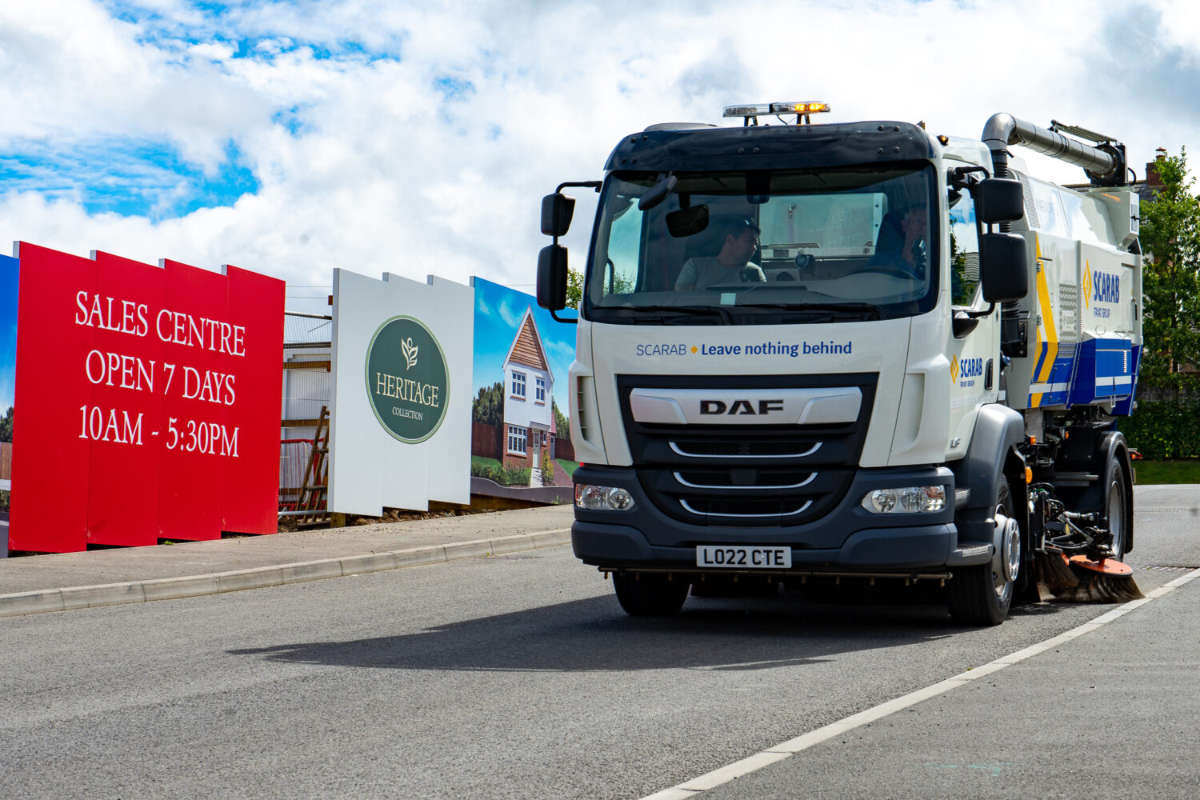

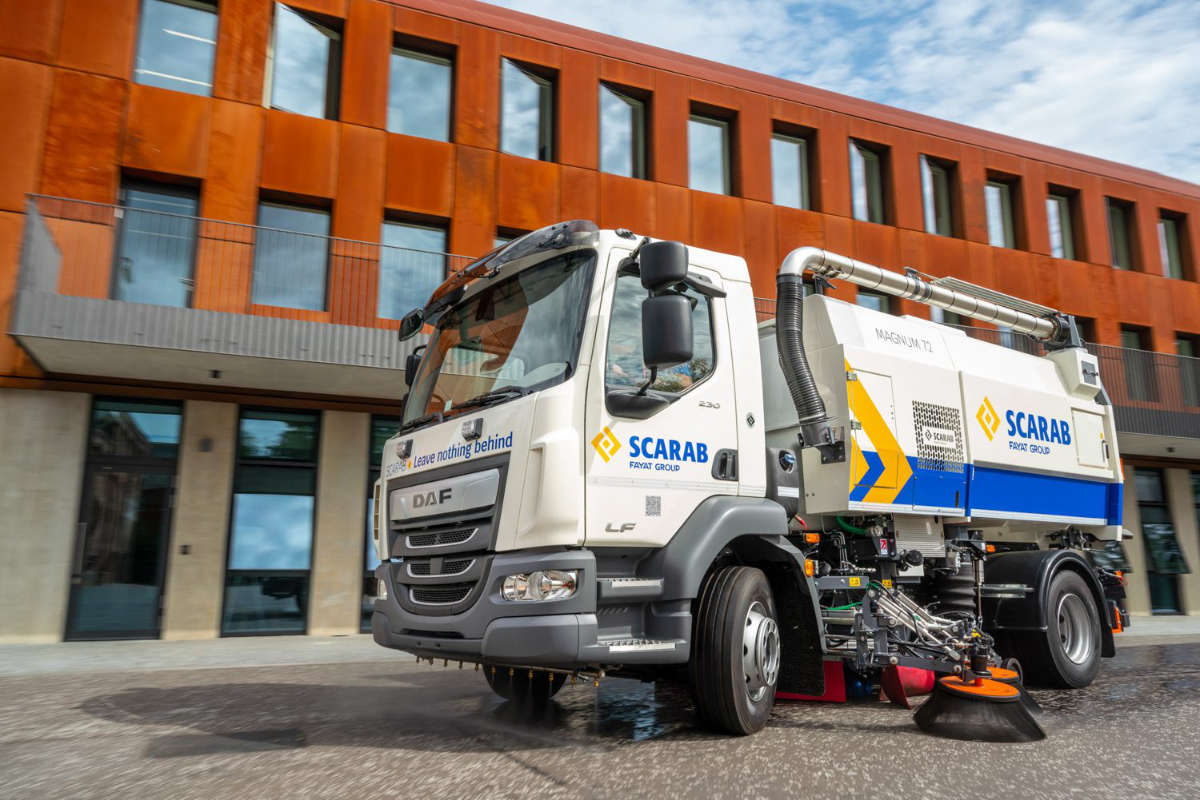

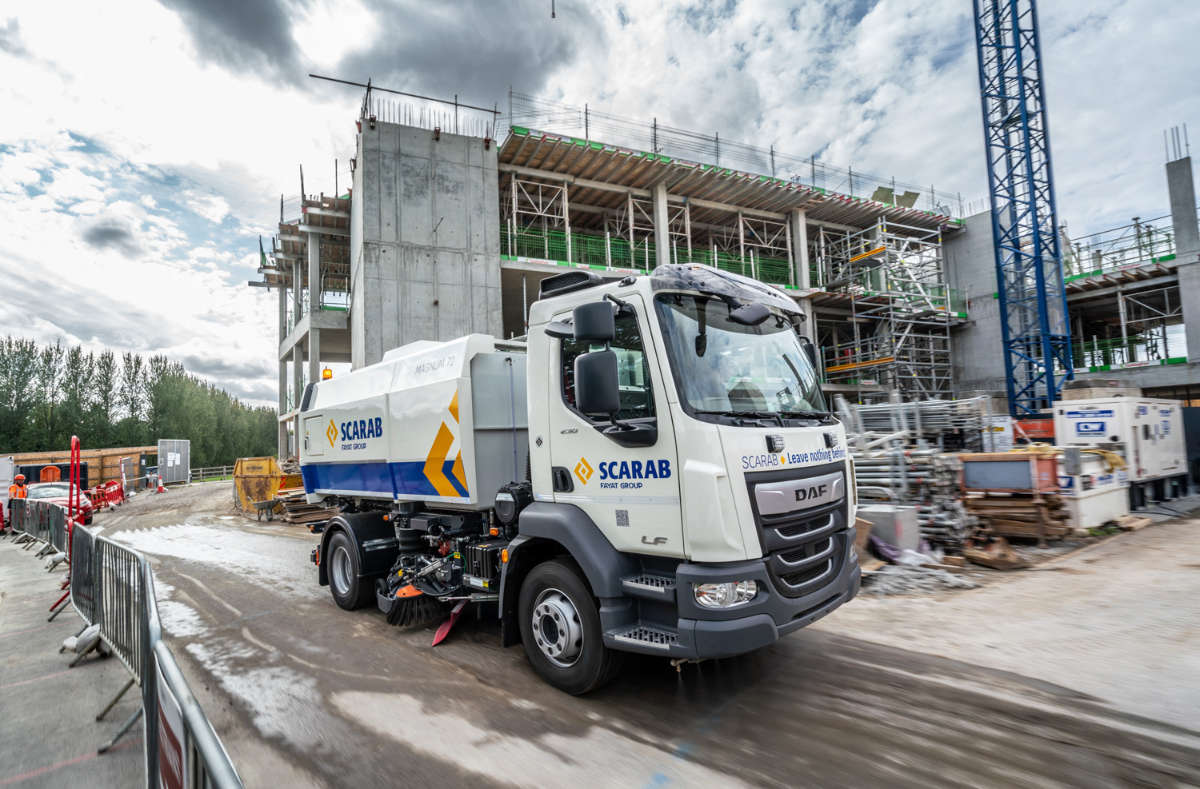

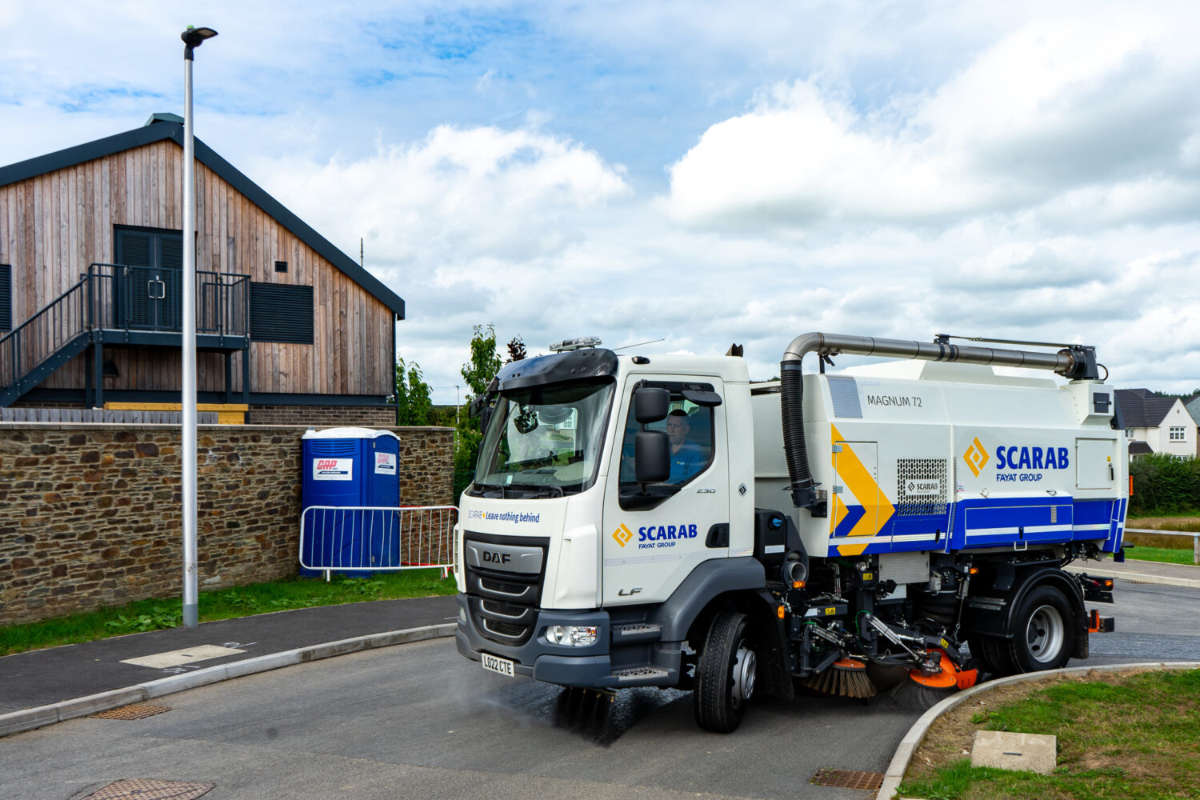

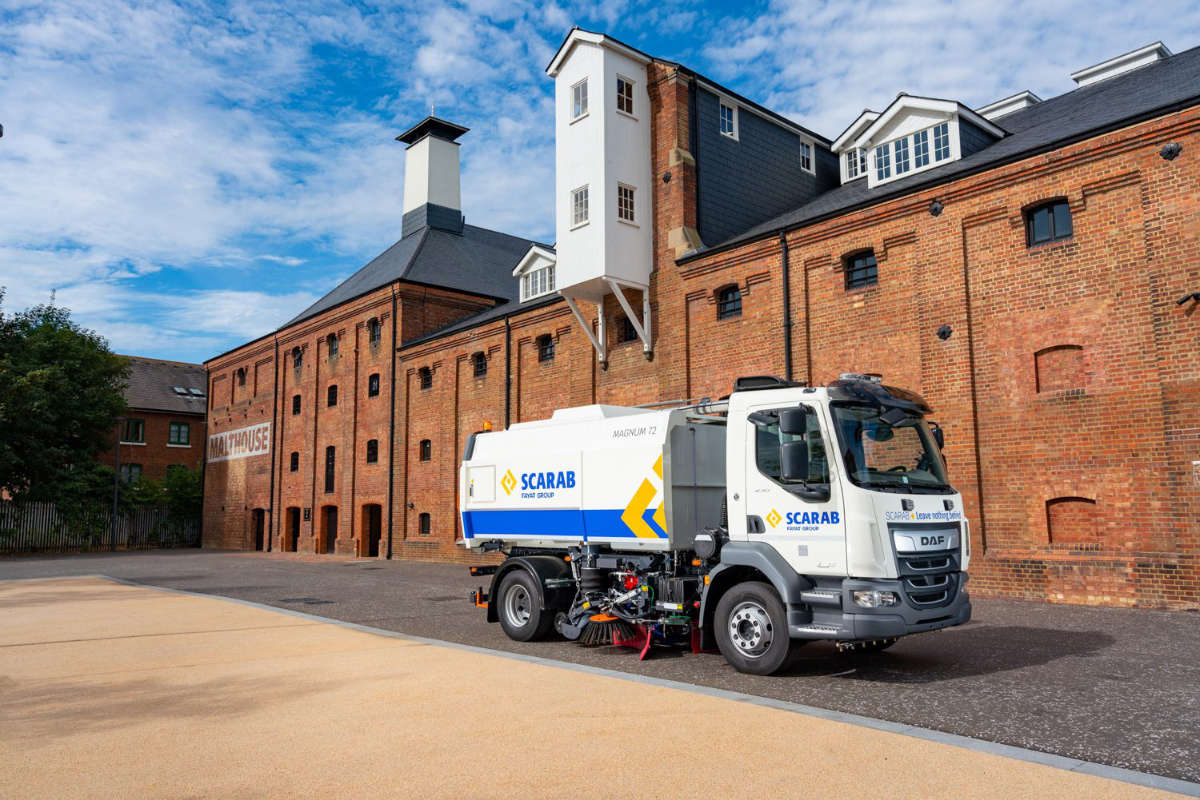

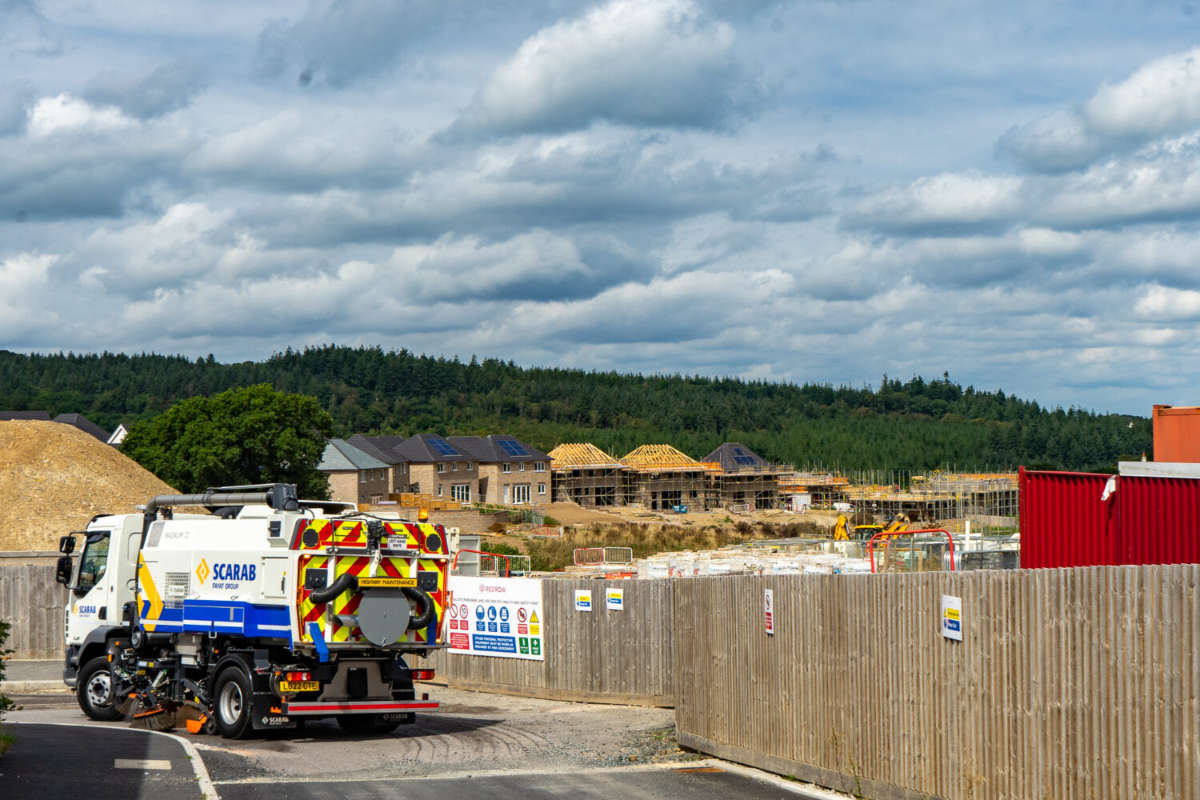

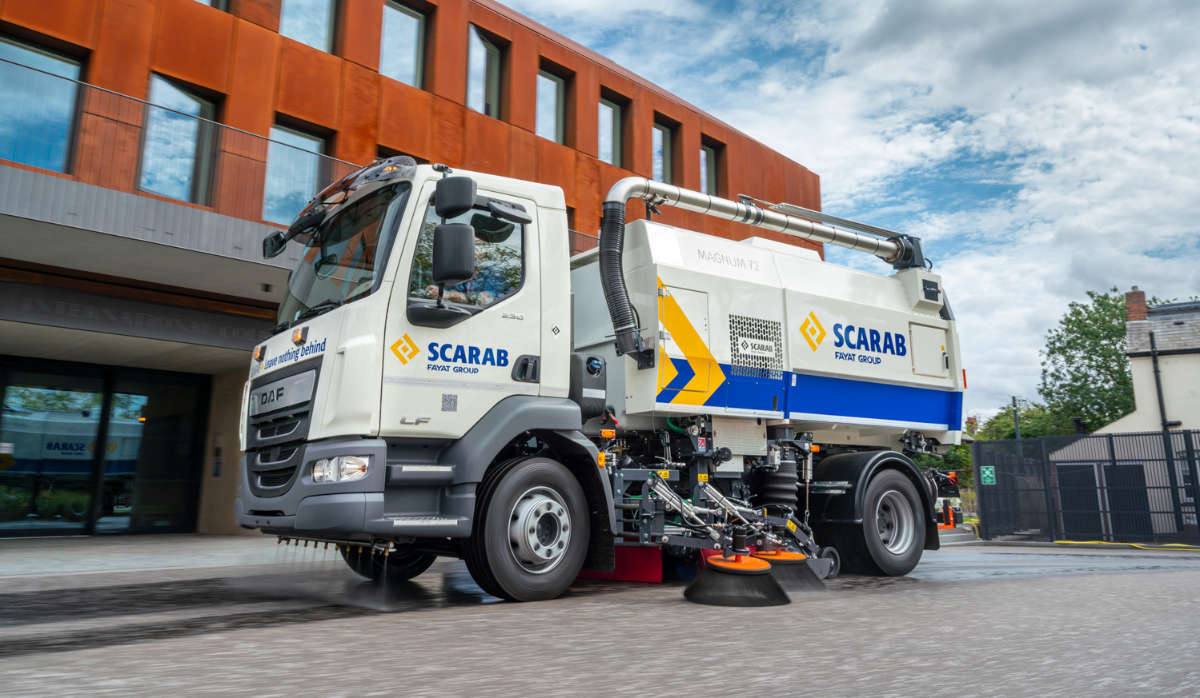

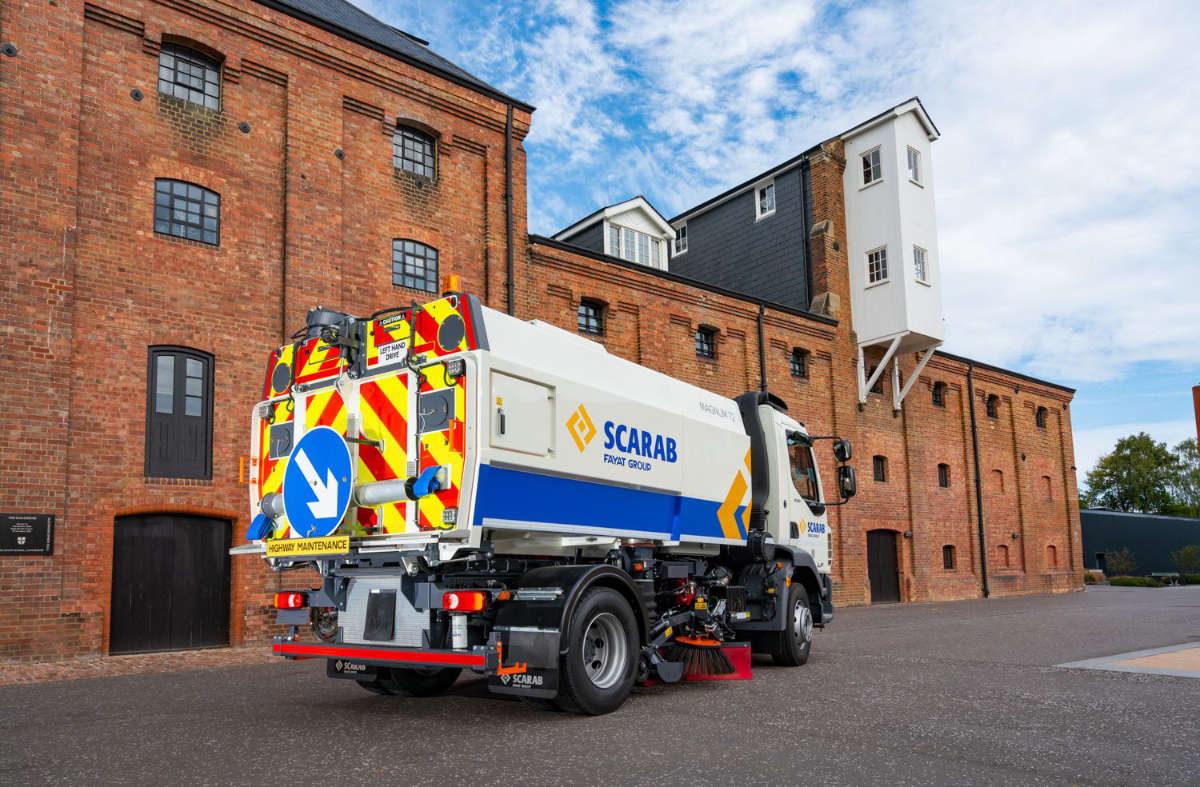

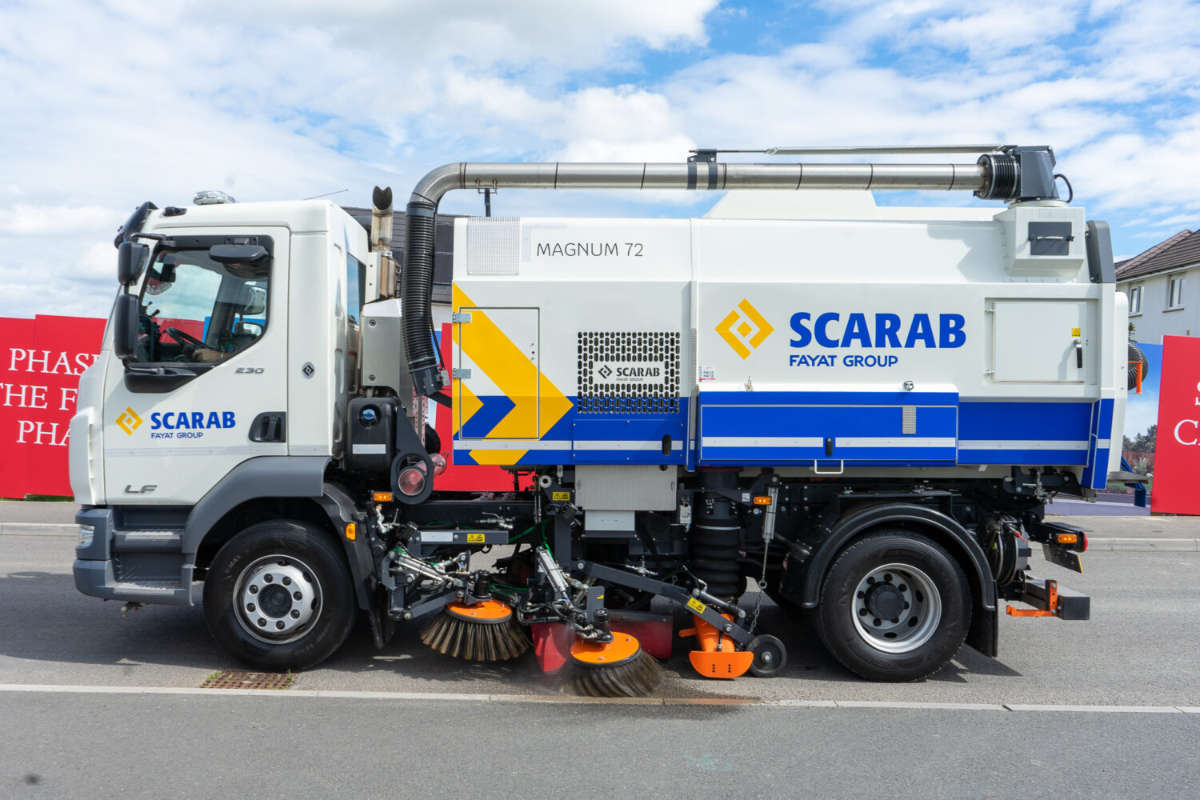

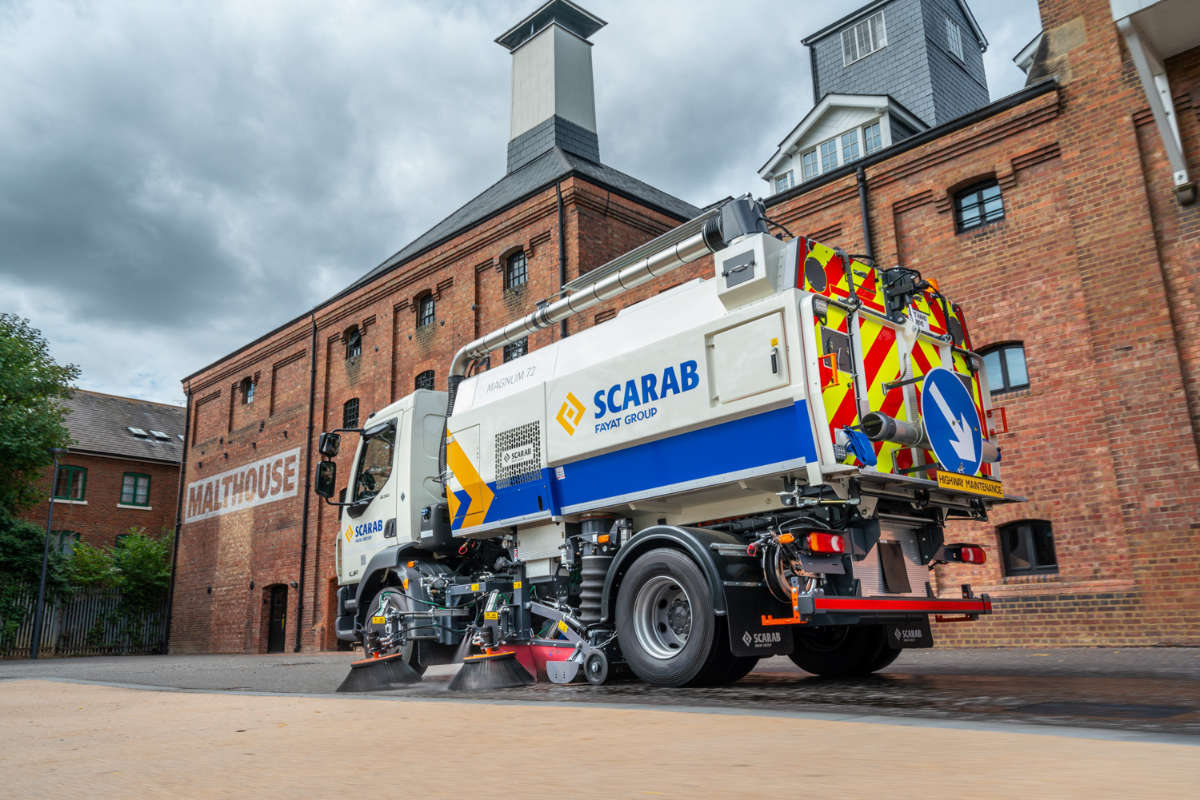

Magnum 72 Truck-Mounted Road Sweeper
High-Capacity Truck-Mounted Sweeper for Heavy-Duty Performance
The Magnum 72 is a high-performance truck-mounted road sweeper designed for mounting on a chassis in the 15-18 tonne GVW range. It delivers powerful cleansing results in demanding municipal, construction, and road maintenance settings. With its single-engine hydrostatic design, a massive 7.2 cubic metre hopper giving a potential payload of up to 9000kg, and a water capacity of up to 2500 litres, the Magnum 72 truck-mounted road sweeper is the optimum solution for on-task endurance and heavy-duty applications. For the most demanding jobs, Scarab's optional high-speed fan solution takes the Magnum 72's performance to the next level. Request a Quote for the Magnum 72
Vehicle specification
| Size: | 15-18 tonne GVW |
| Sweeping speed: | 0-9 mph / 0-15 kph |
| Hopper capacity: | 7.2 cubic metres |
| Water tank: | 1800-2500 litres |
| Engine: | Single Engine |
| Typical payload: | 6000 - 9000 kg |
| Sweep width: | 2365mm (single) / 3200mm (dual) |
- High Capacity: 7.2 cubic metre hopper and potential 9000kg payload for extended time on station.
- Powerful Performance: Single-engine hydrostatic design and optional high-speed fan for demanding applications.
- Chassis Flexibility: Can be fitted to a wide choice of truck chassis from leading manufacturers.
- Lower Emissions: Scarab's pioneering single-engine technology reduces fuel consumption and pollution.
- Total Control: Intuitive CANbus system provides comprehensive feedback and control.
Single Engine Design: Lower Emissions & Running Costs
Scarab is a true pioneer of the single-engine truck-mounted sweeper. By operating the entire machine from the truck chassis engine, the Magnum 72 provides many advantages, including significantly reduced fuel consumption, decreased noise and engine pollution, less weight for a greater payload, and reduced maintenance requirements.
Flexible, Truck-Mounted Solutions
The Magnum 72 is one of Scarab's most expertly engineered truck-mounted road sweeping solutions. This inherent flexibility means the Magnum 72 can be fitted to a wide choice of chassis, including those from DAF, Iveco, MAN, Mercedes, Volvo, Renault, Freightliner, and more, creating the perfect heavy-duty sweeper for your fleet. For more information, please contact our team.

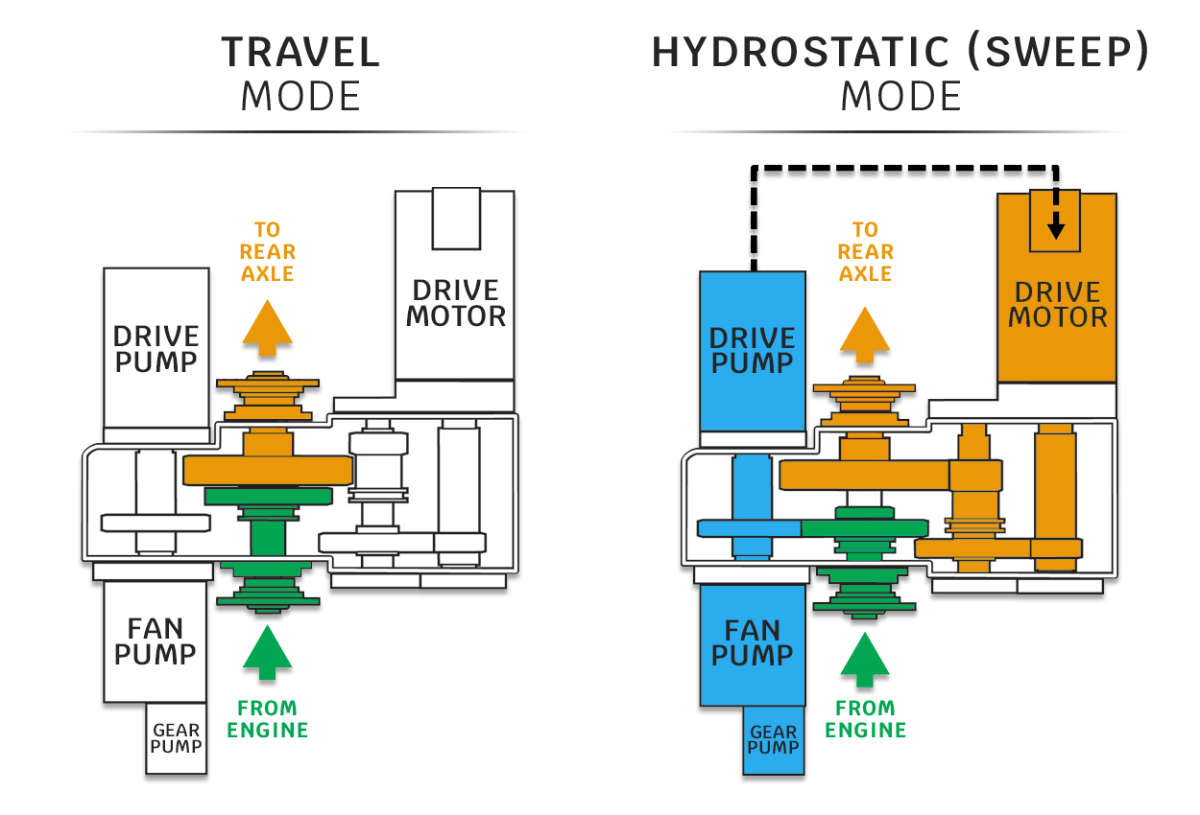

Advanced Drive Configuration
The Magnum 72 features an advanced hydrostatic drive system for reliable, high-performance results. The Scarab-designed hydrostatic gearbox is installed in the chassis driveline, powering sweeping components directly from the chassis engine. Its simple joystick control for Forward and Reverse allows single-pedal operation, which reduces operator fatigue and enables the driver to fully concentrate on the sweeping task.

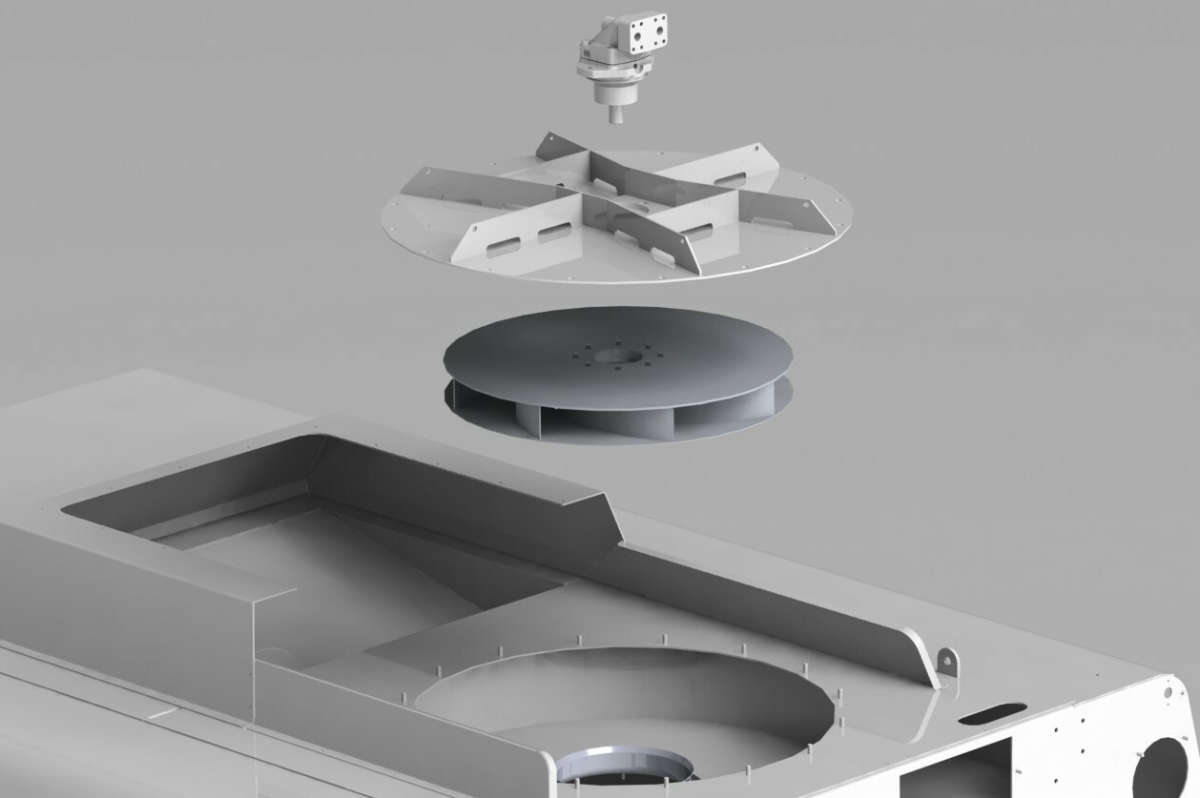

Powerful & Reliable Suction Performance
A stainless steel 905.5mm roof-mounted impellor is positioned to produce a short and efficient airflow path, ensuring high suction performance and reduced power consumption. For the most demanding applications, Scarab's optional high-speed fan takes the Magnum 72's performance to the next level.
CANbus Control System for Total, Intuitive Control
The intuitive CANbus controls and a colour monitor provide comprehensive feedback to both the driver and service team. The clear display indicates the sweeping configuration and vehicle condition while also highlighting warnings and service reminders. Our real-time monitoring and data logging provide valuable assistance in troubleshooting technical problems and help keep your Magnum 72 running at its most efficient.
Market-Leading After Sales Support
National Sweeper Services is proud to offer comprehensive After Sales support for your Magnum 72. We offer a range of tailored Service and Maintenance contracts to ensure that your Scarab machines keep working at optimum performance for longer. Furthermore, our dedicated parts warehouse ensures genuine Scarab parts are always in stock and can be shipped to clients around the world.
Strong, Robust Hopper
The Magnum 72's hopper is completely manufactured from strong, corrosion and abrasion-resistant 4003 stainless steel. The hopper is shot-blasted before a two-pack epoxy primer and a hard-wearing topcoat are applied, providing a superior, long-lasting finish. The particulate screening is hinged and swings down to provide easy access for operator cleaning.

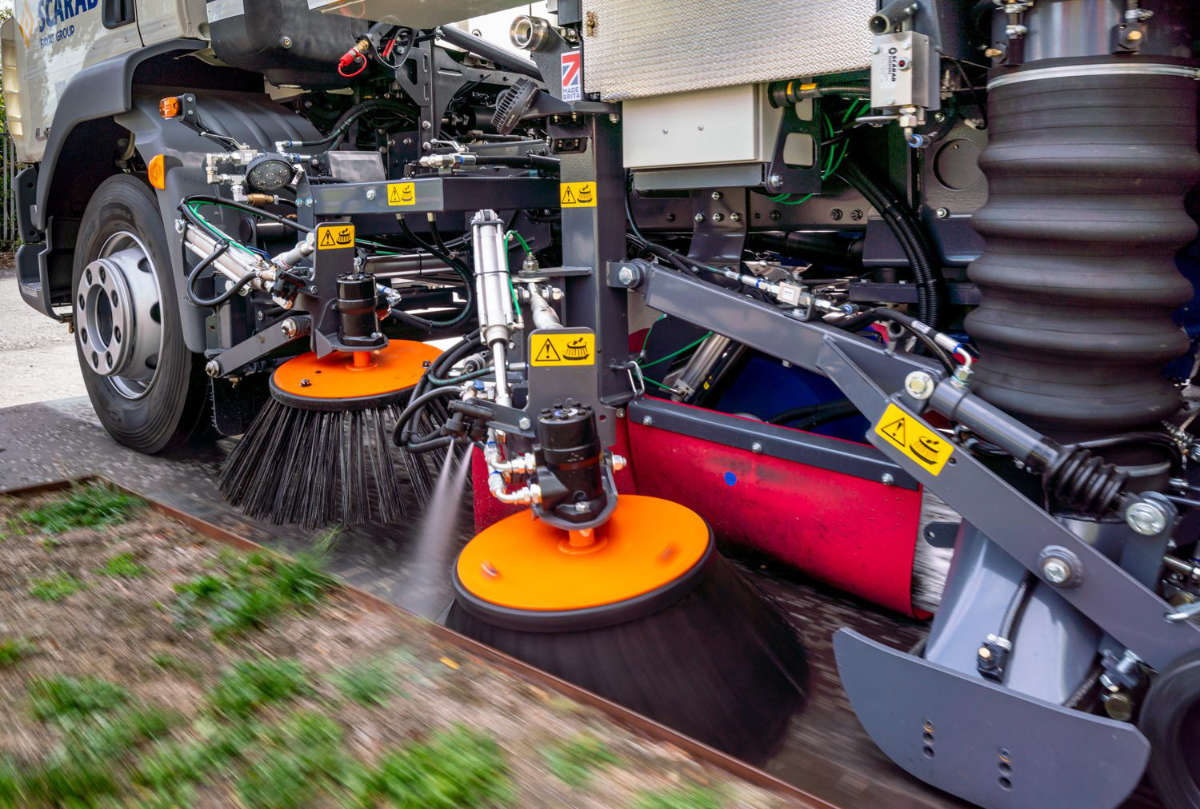

Extensive Sweeping Capabilities

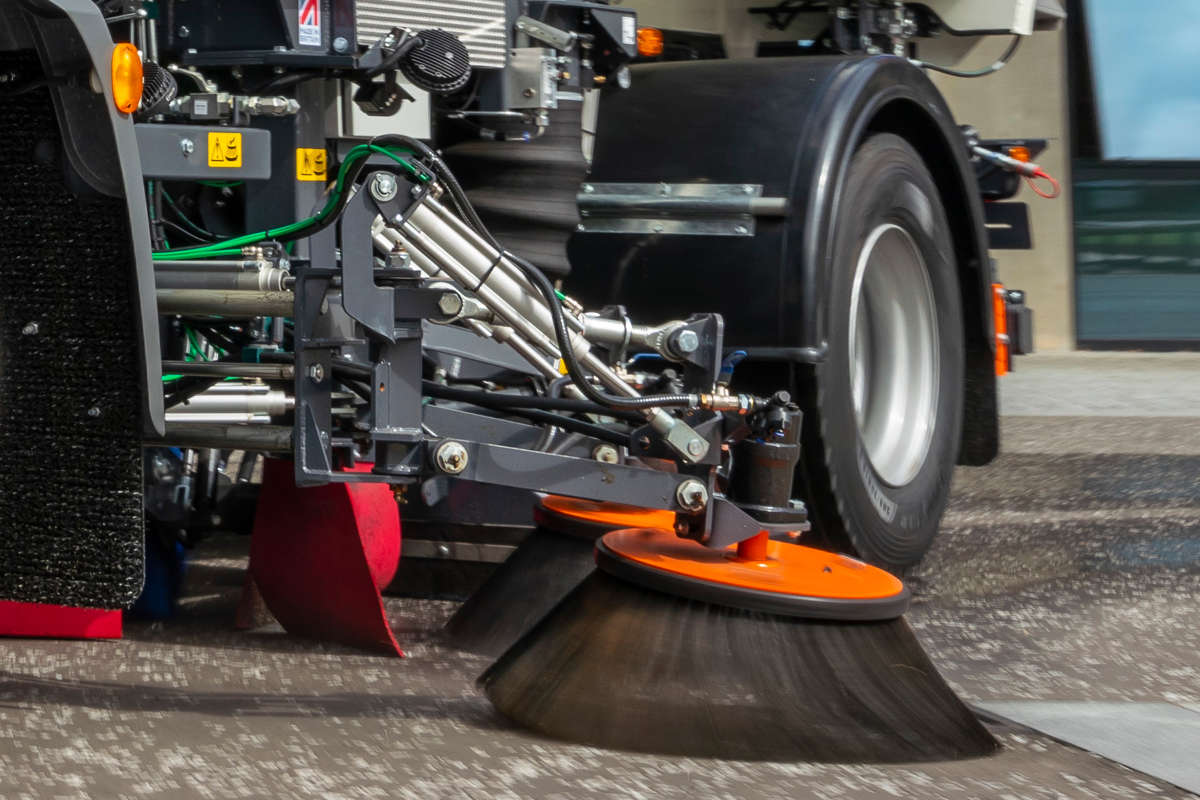

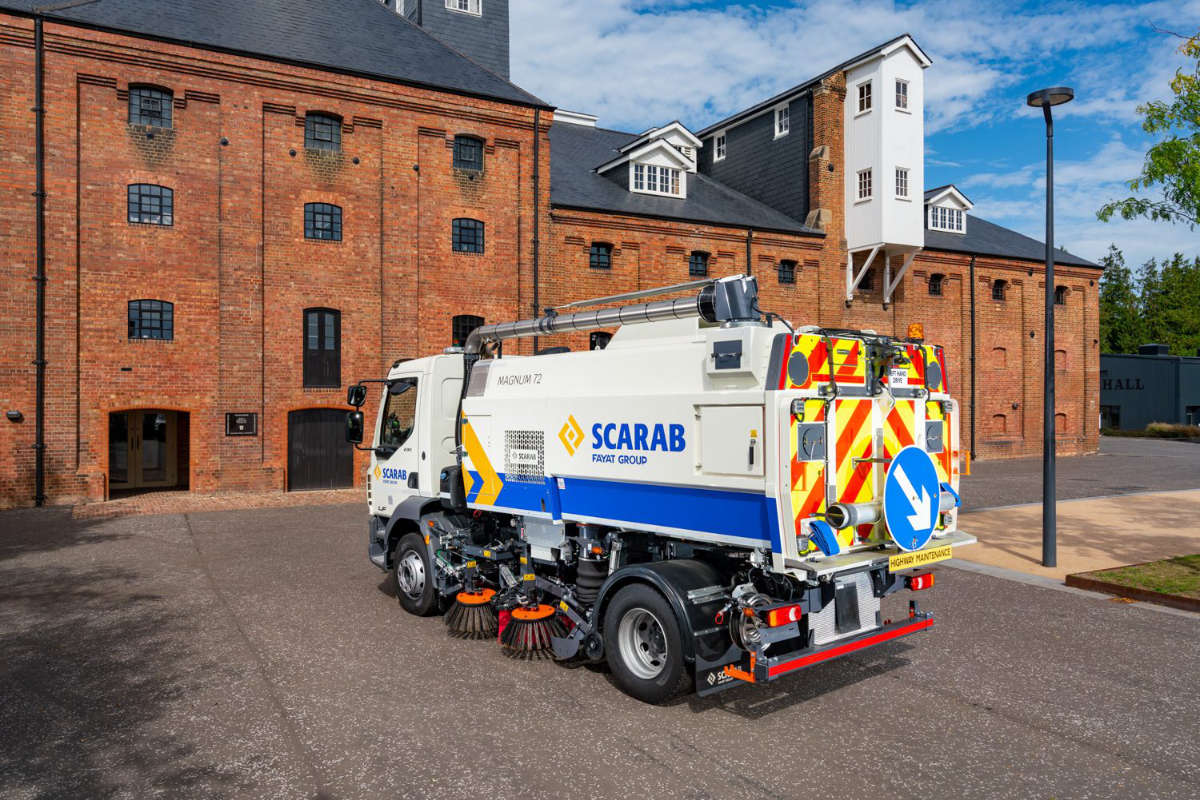

The Magnum 72 is available in both single and optional dual sweep configurations. When the suction nozzle, side brush, and widesweep functions are in operation, the Magnum 72 can sweep at a 2365mm width. However, the brushes can reach an impressive 3200mm span when simultaneously dual sweeping, covering large areas quickly and efficiently.
Magnum 72 Customisation Options
The Magnum 72 truck-mounted road sweeper comes with a variety of options to meet the specific demands of your operation. For a full list and consultation, please get in touch.
High-Pressure Water & Washing Options
- High-pressure / High Volume Pump with hand lance and self-retracting hose reel
- Overhead mounted High-pressure water boom

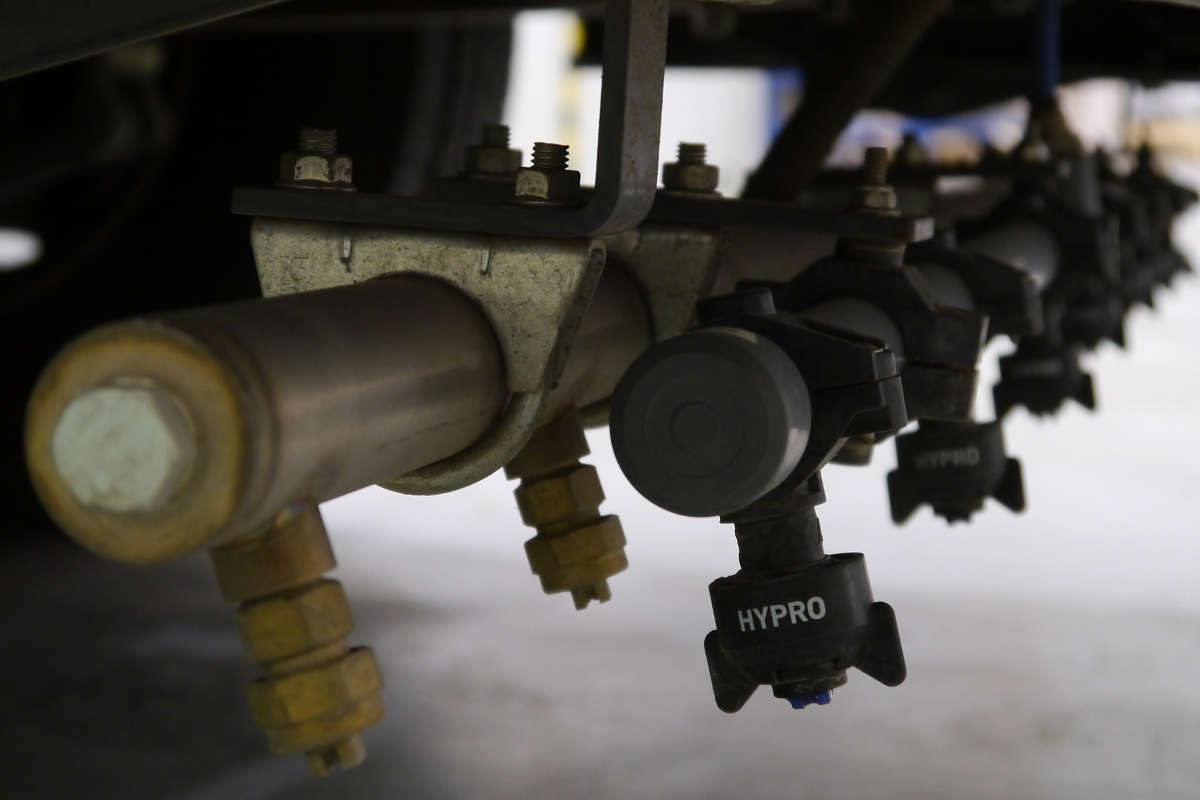

- Additional Dust Suppression for Suction Nozzles
- Additional Dust Suppression for Suction Tubes
- Detergent Injection Kit
- Hydrant Standpipe and hose
- Simultaneous Wash & Sweep Facility
Auxiliary Brush & Sweeping Options

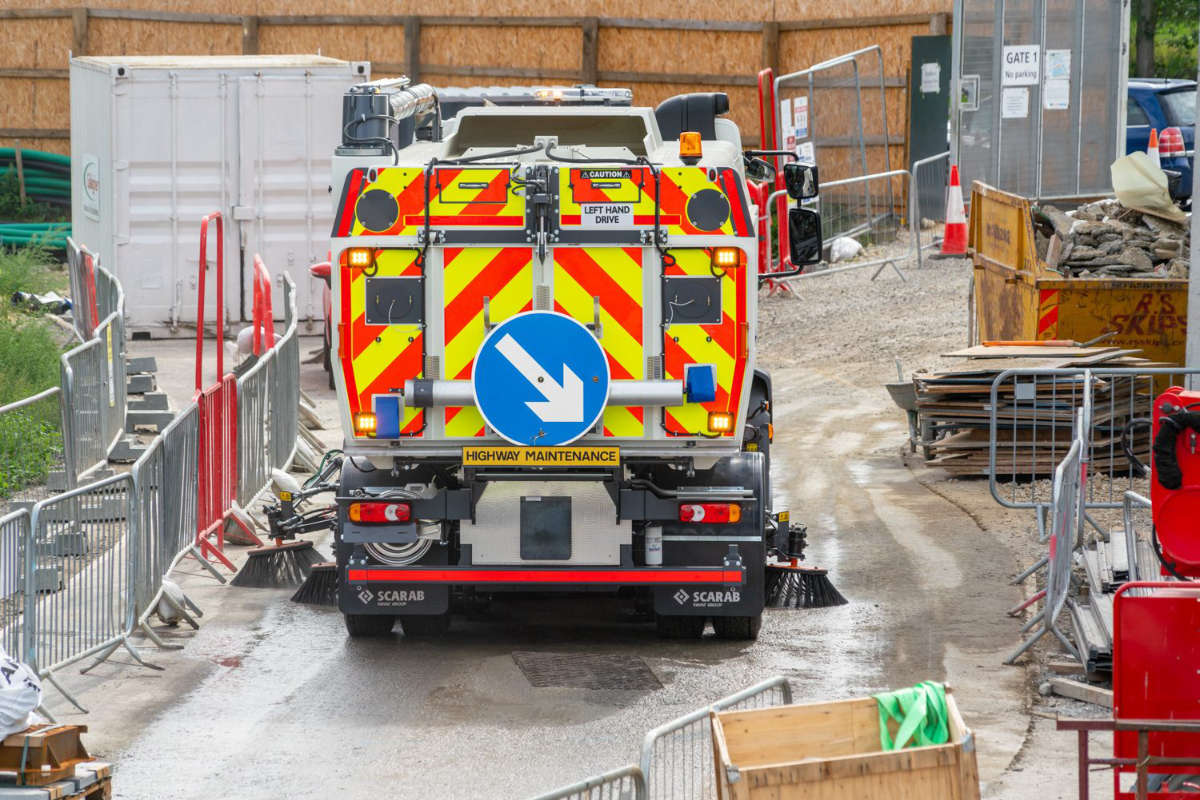

- Dual Sweep Configuration
- Simultaneous Dual Sweep
- Auxiliary Channel Brush on a sliding/swing-out mount
- Adjustable Pressure Control for Brushes
- Tilting Brush
- Vari Brush (variable brush control)
Debris Collection & Suction Options
- Suction Tube Dust Suppression
- Rear-mounted swing-out Wander Boom

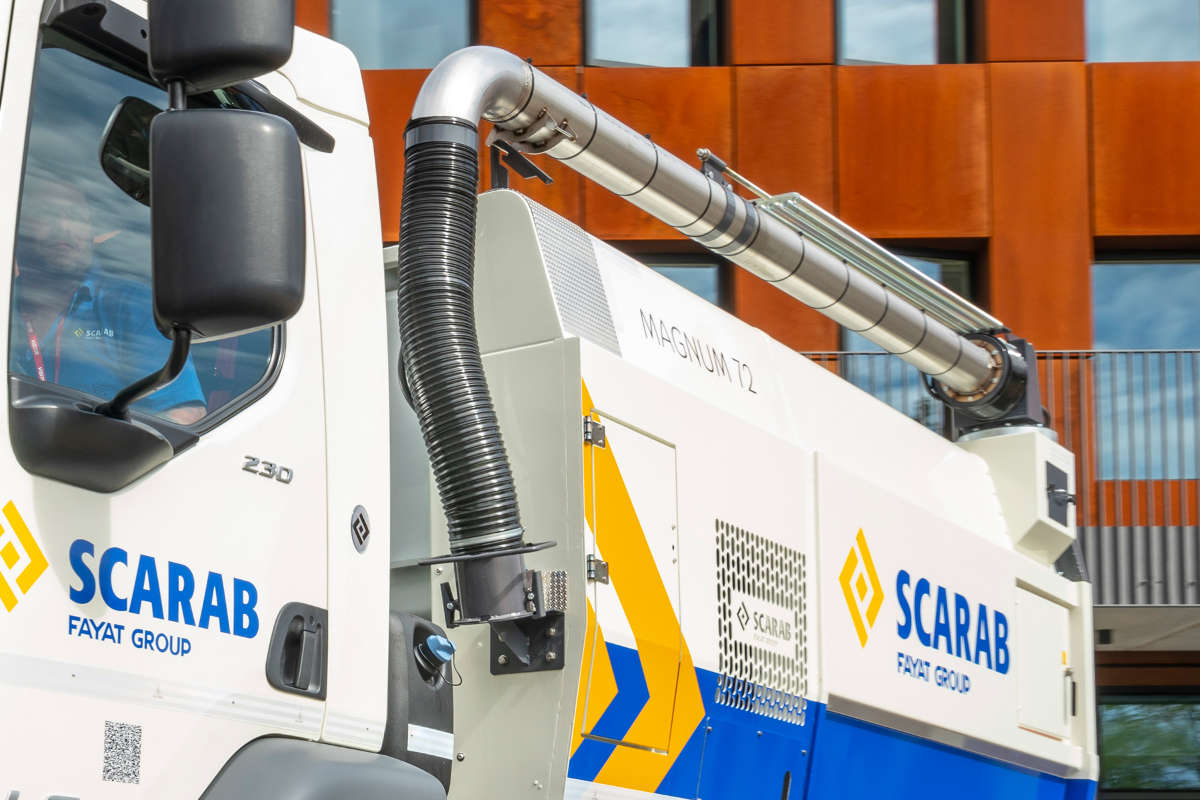

- Overhead-mounted Wander Boom
- Door-mounted Wander Hose
Safety, Monitoring & Maintenance Options
- CCTV Camera system
- Centralised Lubrication System (manual or automatic)
- Alternative or additional beacons
- Fire Extinguisher
